HomeGlass Railing Door Latches Glass Door Latch 180 Degree
Full Glass to Glass Gate Latch 180 Degree

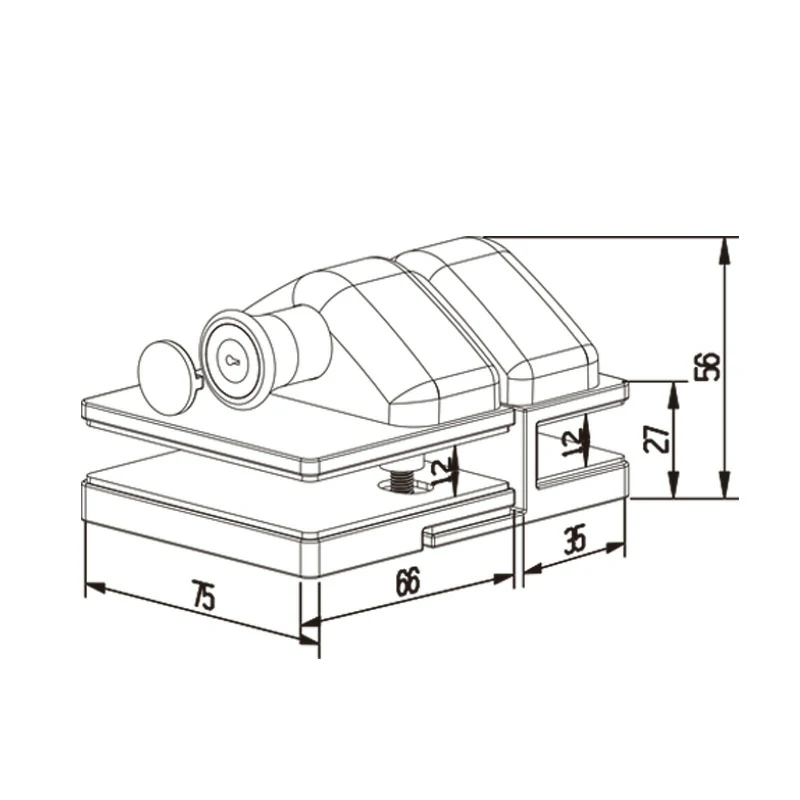

Glass to Glass Gate Latch Structure
Full Glass to Glass Gate Latch 180 Degree Glass to Glass Gate Latch Structure

Glass Door Latch 180 Degree

Part No. LS-DL-349

Glass Thickness 8-12mm
Weight 1.12Kg
Outline Dimension 101mm*75mm*56mm
Material 2205/304/316
Application: Pools, glass enclosures, etc.

Glass Door Latch Description

Stainless steel glass-to-glass gate latch (180-degree) is a specialized designed for frameless glass fences or pool enclosures. It provides a secure and user-friendly method for opening and closing a gate within a glass enclosure. The 180-degree design allows the gate to fold flat against the adjoining glass panel when closed, saving space and maintaining a clean aesthetic.

The glass-to-glass gate latch is made entirely from high-quality stainless steel, this ensures superior durability, corrosion resistance, and can withstand harsh weather conditions and constant exposure to moisture around pools. The clean lines and minimalist look of the latch can enhance the overall aesthetic of the glass gate or door.

Glass Door Latch Specifications

Product Name

Door Latches

Outline Dimension

101mm*75mm*56mm

Glass Thickness

8-12mm

Weight

1.12Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Pools, glass enclosures, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These glass door latchs are installed using specialized hardware designed for glass applications, such as clamps or brackets that secure the latch to the glass surfaces. Ensure the latch is securely installed and properly aligned with the strike plate for optimal functionality and security. Regularly inspect the latch and strike plate for any signs of wear or damage, and replace them if necessary.

Stainless steel is relatively low maintenance and easy to clean. Regular cleaning with a mild detergent and water can help preserve the appearance and functionality of the latch over time.

Glass to Glass Gate Latch for Pool Fence
