Glass Clamp Description
This No Hole Curved Bottom Fish Mouth 316 Glass Clamp is suitable for 8-12mm glass, Suitable for a wide range of glass applications both indoors and outdoors, providing a stylish and contemporary aesthetic.
316 glass clamps are known for its corrosion resistance and durability, making it suitable for outdoor and marine environments. The fish mouth design allows for a secure grip on the glass panel, ensuring stability and safety. The curved bottom of the clamp provides an ergonomic shape that conforms to the surface of the glass, enhancing the grip and distribution of pressure. The absence of pre-drilled holes in the clamp allows for a clean and seamless installation without visible mounting points. These glass clamps are available in different sizes to accommodate various glass panel thicknesses and sizes.
Glass Clamp Specifications
|
Product Name |
No Hole Curved Bottom Fish Mouth Clamp |
|

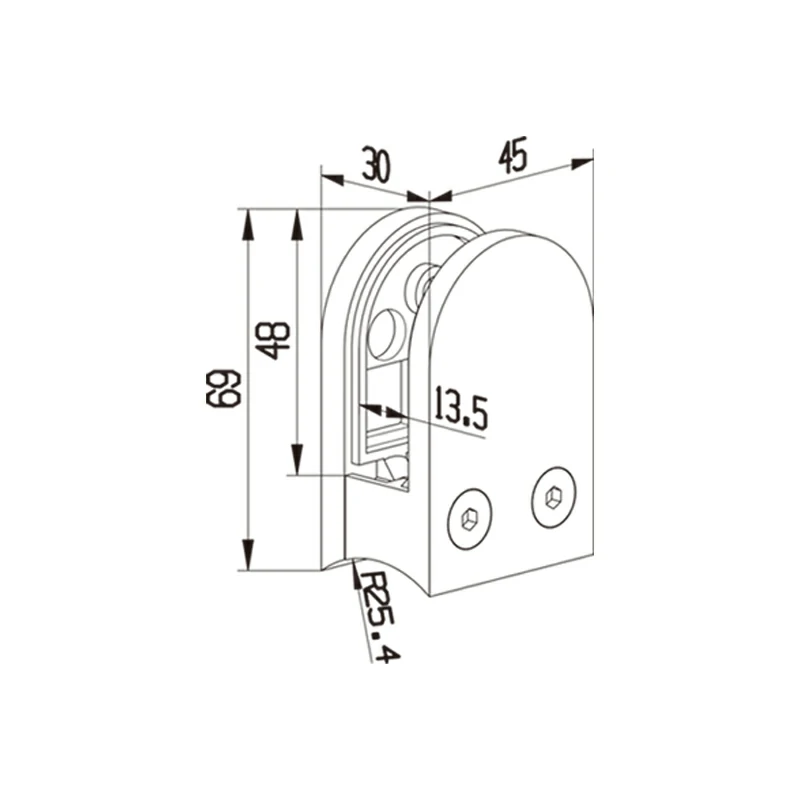

Outline Dimension |
45mm*30mm*69mm |
|
Glass Thickness |
8-12mm |
|
Weight |
0.27Kg |
|
Finish |
Classic Satin/Mirror (We can do anti-fingerprint if necessary.) |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass Display Case, Glass Fence, Glass Staircase |
|
Casting Process |
Siica Sol Technics With Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
No Hole Curved Bottom Fish Mouth 316 Glass Clamps combines functionality, durability, and a stylish design suitable for securing glass panels in architectural, interior design, and construction projects. Its corrosion-resistant properties, ergonomic design, and versatility make it an ideal choice for modern glass installations that require both reliability and aesthetic appeal. By choosing the right clamps and ensuring proper installation, you can create a visually appealing and functional glass structure for your space.
