Glass Clamp Description
The No-hole 180° double-ended square head frameless glass clamp is suitable for 12mm glass that provides secure support for frameless glass panels at a 180-degree angle in architectural and design applications without the need for drilled holes. The double-ended square head design of the glass clamp allows for easy and secure attachment of the frameless glass panels at a 180-degree angle, ideal for creating corners, turns, or connections in frameless glass systems without obstructing the view.
Glass clamps are available in a variety of styles and sizes to accommodate different thicknesses of glass panels and suit various applications. They can be used for both interior and exterior applications.
Glass Clamp Specifications
|
Product Name |
No-hole 180° Double-ended Square Head Clamp |
|
Outline Dimension |

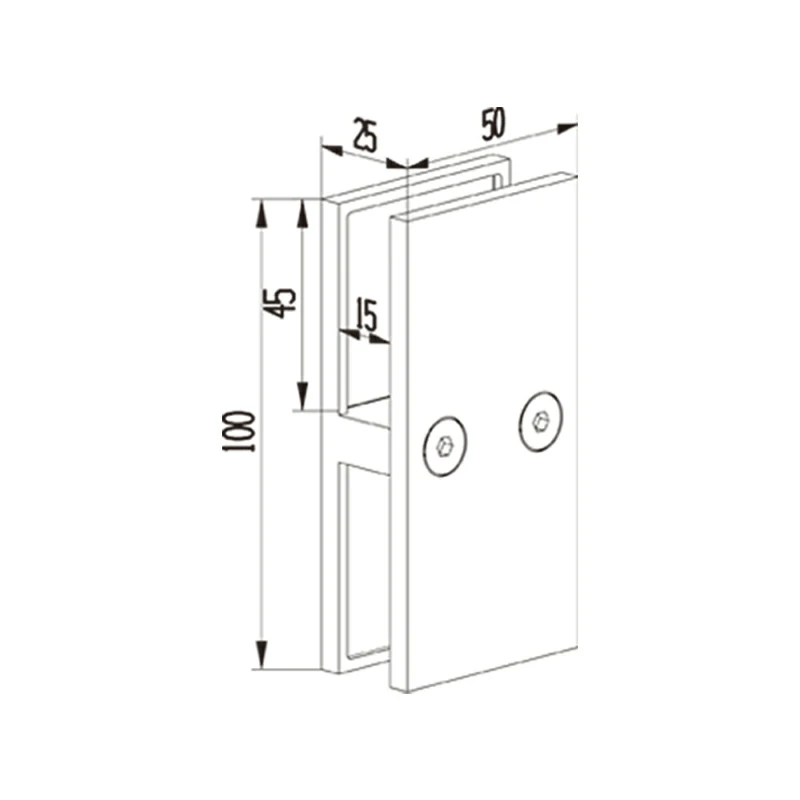

50mm*25mm*100mm |
|
Glass Thickness |
12mm |
|
Weight |
0.41Kg |
|
Finish |
Classic Satin/Mirror (We can do anti-fingerprint if necessary.) |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass Display Case, Glass Fence, Glass Staircase |
|
Casting Process |
Siica Sol Technics With Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These glass clamps play a crucial role in maintaining the structural integrity of the glass panels while allowing for an unobstructed view and a modern, open feel in the space where they are installed.
The glass clamp is constructed from high-quality stainless steel, known for its durability, corrosion resistance, and modern aesthetic. Stainless steel ensures the longevity and stability of the clamp in various environments.
Glass clamps are generally easy to install, but requires professional construction to ensure the quality of installation and safety.
The design is simple and beautiful, and will not damage the overall feeling of the building.
