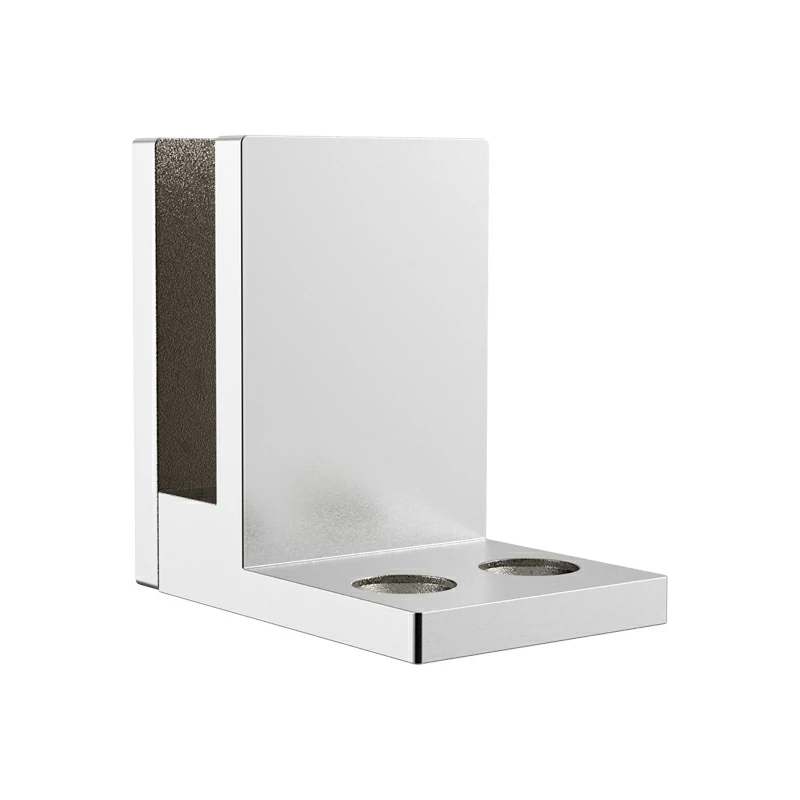

Glass Clamp Description
The No-hole F-type square head glass partition clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass without the need for drilling holes in the glass itself. The square head design of the clamp provides a secure grip on the glass panel, ensuring it stays in place and remains stable.
Glass partition clamps come in various designs and sizes to accommodate different glass thicknesses and installation requirements. The clamp is made of high-quality stainless steel, which is durable, corrosion-resistant, and strong, making it ideal for long-lasting use, to provide both structural support and an attractive finish. These glass clamps play a crucial role in creating modern and open interior spaces while ensuring the stability and safety of the glass partitions.
Glass Clamp Specifications
|
Product Name |
No-hole F-type Square Head Clamp |
|

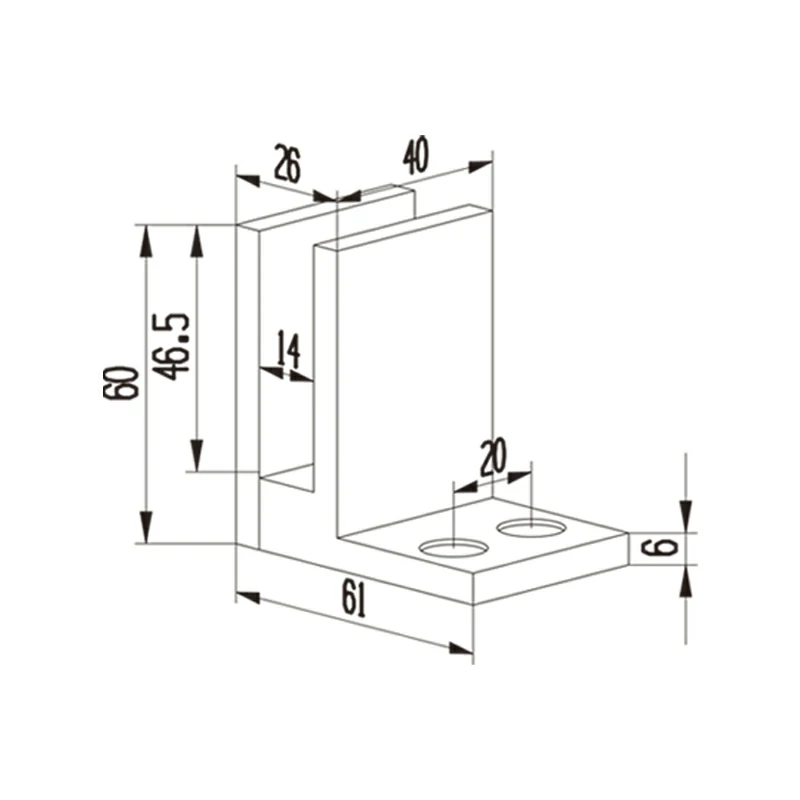

Outline Dimension |
61mm*40mm*60mm |
|
Glass Thickness |
12mm |
|
Weight |
0.34Kg |
|
Finish |
Classic Satin/Mirror (We can do anti-fingerprint if necessary.) |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass Display Case, Glass Fence, Glass Staircase |
|
Casting Process |
Siica Sol Technics With Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The clamp typically comes with all necessary hardware for installation, and it can be easily attached to the glass panel using screws or other fasteners.
Glass partition clamps offered in various finishes like brushed, polished, and satin, complementing diverse interior and exterior design styles.
