Glass Spigot Description
This post standing duplex 2205 glass spigot is used for the following 12mm glass. They are commonly used in glass railing systems for balconies, staircases, terraces, and other architectural applications where a transparent and modern railing solution is desired.
The spigot is designed to be embedded into the ground, creating a clean and seamless look, and providing a stable base for glass panels in a glass railing system. These glass spigots are made of duplex stainless steel 2205, a high-quality material known for its excellent corrosion resistance, strength, and durability.
Glass Spigot Specifications
|
Product Name |
Post Standing Glass Spigot |
|

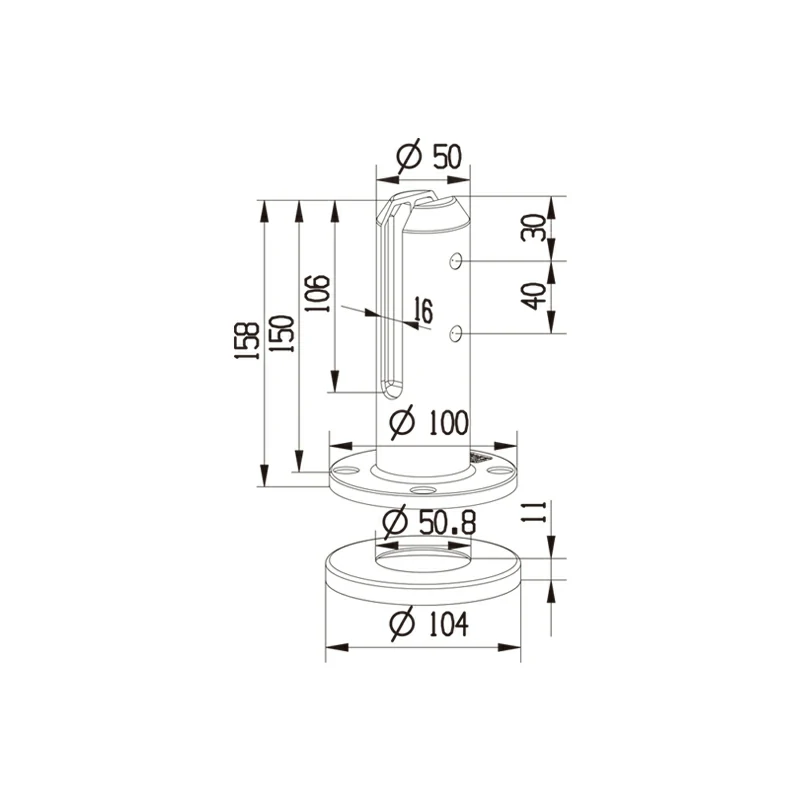

Outline Dimension |
158mm*50mm |
|
Glass Thickness |
12mm |
|
Weight |
0.98Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex Stainless Steel 2205, Stainless Steel 304/316 |
|
Application |
Glass Railings, Pool Fencing, Railings, etc. |
|
Casting Process |
Siica Sol Technics Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Week |
|
Delivery Time |
4--5 Week |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Post standing duplex 2205 glass spigots are versatile and can be used with a variety of glass panel thicknesses and types. They can be used with tempered, laminated, and patterned glass, as well as glass panels of various thicknesses.
This 2205 glass spigot is an economical product that reduces the weight of the product as much as possible in order to reduce costs, while ensuring that it meets the maximum load-bearing capacity of the customer's needs. The spigot is usually installed by attaching it to a post or a base plate using appropriate fasteners. The glass panel is then inserted into the spigot and secured in place, creating a seamless and secure connection.
