Square Floor-standing Stainless Steel 304 Glass Spigot

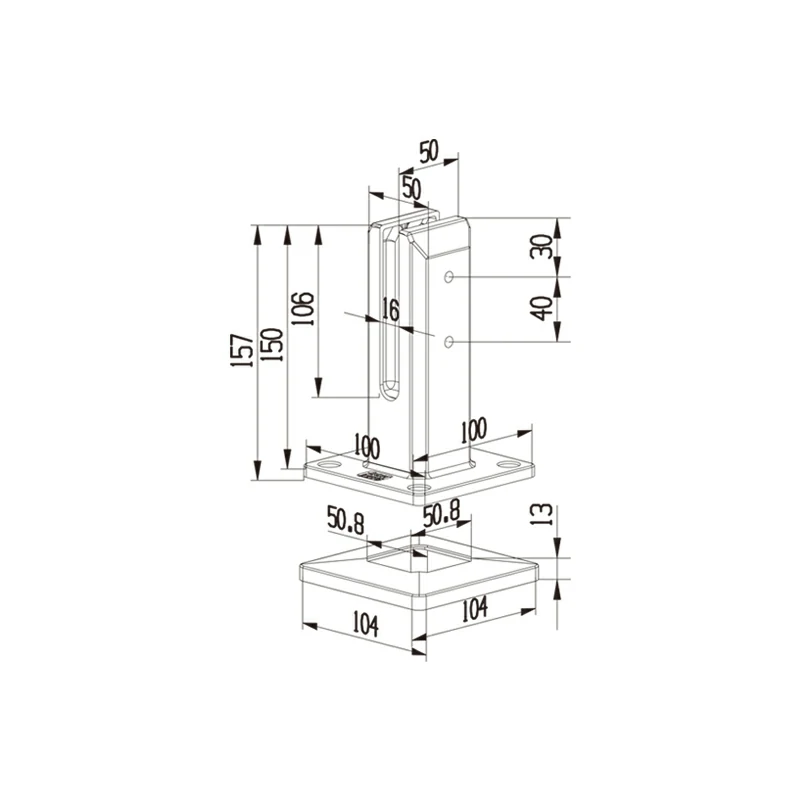

Square Floor-standing Glass Spigot Structure
Square Floor-standing Stainless Steel 304 Glass Spigot Square Floor-standing Glass Spigot Structure

Square Floor-standing Glass Spigot

Part No. LS-BSF

Glass Thickness 12mm
Weight 1.25Kg
Outline Dimension 157mm*104mm*104mm
Material 2205/304/316
Application: Glass railings, Pool fencing, Railings, etc

Glass Spigot Description

This Square floor-standing stainless steel 304 glass spigot is used for glass below 12mm. It is a specialized hardware component designed to securely attach glass panels to the ground, creating elegant and modern glass walkways, patios, pool surrounds, and other ground-level structures. The square base provides a stable and sturdy foundation for the glass panel. The glass spigot is designed to be mounted directly to the floor, creating a clean and seamless look.

These glass spigots provide a stable and secure grip on glass panels, ensuring the structural integrity of ground-level glass structures and preventing wobbling or movement. It is made of high-quality 304 stainless steel, ensuring durability and corrosion resistance.

Glass Spigot Specifications

Product Name

Square Floor-standing Glass Spigot

Outline Dimension

157mm*104mm*104mm

Glass Thickness

12mm

Weight

1.25Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Glass railings, Pool fencing, Railings, etc

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Stainless Steel 304 Square Floor-standing Glass Spigot Package

Note

This stainless steel 304 glass spigot is an economical product that reduces the weight of the product as much as possible in order to reduce costs, while ensuring that it meets the maximum load-bearing capacity of the customer's needs.

Square floor-standing stainless steel 304 glass spigots are usually installed by anchoring them to the floor surface using screws or bolts. Proper installation is essential to ensure the stability and safety of the glass railing system.

Stainless Steel 304 Glass Spigot Application
