Square In-ground Stainless Steel 316 Glass Spigot

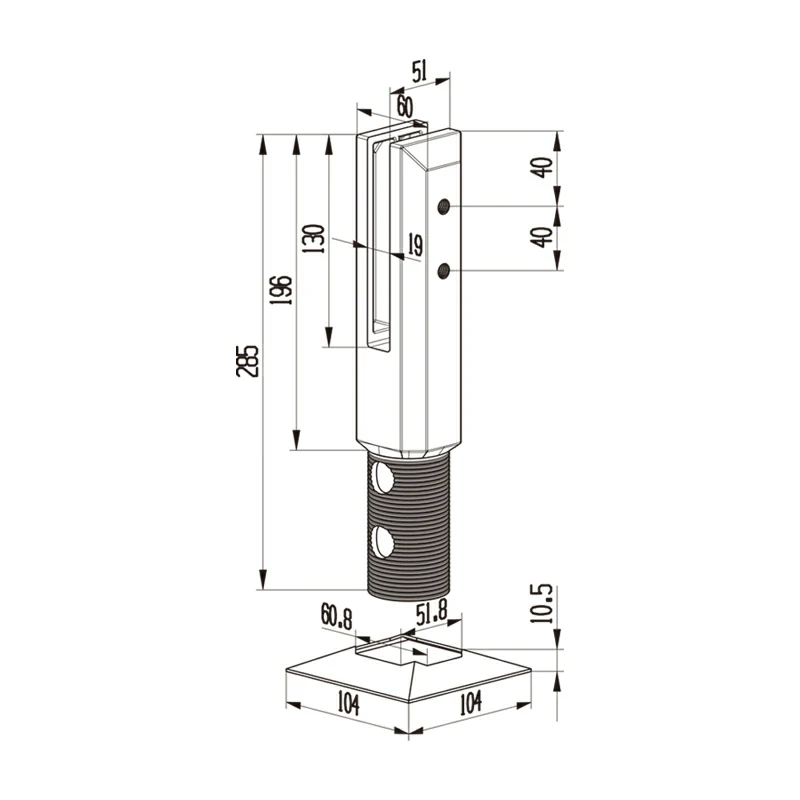

Square In-ground Glass Spigot Structure
Square In-ground Stainless Steel 316 Glass Spigot Square In-ground Glass Spigot Structure

Square In-ground Glass Spigot

Part No. AM-15

Glass Thickness 12mm
Weight 2.53Kg
Outline Dimension 285mm*104mm*104mm
Material 2205/304/316
Application Swimming pool fence, Garden fence, etc.

Glass Spigot Description

This Square In-ground Glass Spigot is used for 12mm glass. It a heavy-duty 316 glass spigot with stronger load-bearing capacity, suitable for environments that require high load-bearing capacity, such as high-rise buildings and swimming pools. Under the premise of ensuring to meet the customer's demand for maximum load bearing, this glass spigot reduces the weight of the product as much as possible in order to reduce the cost.

There are different designs and styles of 316 glass spigots available to accommodate various glass thicknesses, railing configurations, and design preferences. Stainless steel 316 is a high-quality grade of stainless steel known for its excellent corrosion resistance and durability. It is particularly well-suited for outdoor applications or environments where the spigots may be exposed to moisture or harsh elements.

Glass Spigot Specifications

Product Name

Square In-ground Glass Spigot

Outline Dimension

285mm*104mm*104mm

Glass Thickness

12mm

Weight

2.53Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Swimming Pool Fence, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

316 Stainless Steel Glass Spigots Package

Note

This stainless steel 316 glass spigot is suitable for concrete floors and poured concrete floors. Ensure the spigots are compatible with the type of glass panel being used, considering factors like thickness, weight, and edge treatment.

Properly installed stainless steel 316 glass spigots play a crucial role in ensuring the structural integrity and safety of glass railing systems. They help prevent glass panels from shifting or coming loose, providing a secure barrier for users. Regular cleaning with a mild detergent and water can help preserve the appearance of the spigots and prevent tarnishing or corrosion over time.

Square In-ground Stainless Steel 316 Glass Spigot Application
