Glass Spigot Description
This angled base floor black glass spigot is used for glass under 12mm. Angled base floor glass spigots is designed to be mounted directly onto the floor surface, for attaching glass panels at an angle to horizontal floor surfaces, allowing for unique and visually appealing designs in various settings.
We can be customized according to the actual needs of customers in the direction of the threaded holes, used for staircase fences, the design of the sloping bottom can make the product easier to clean and maintain.
Glass Spigot Specifications
|
Product Name |
Angled Base Floor Glass Spigot |
|

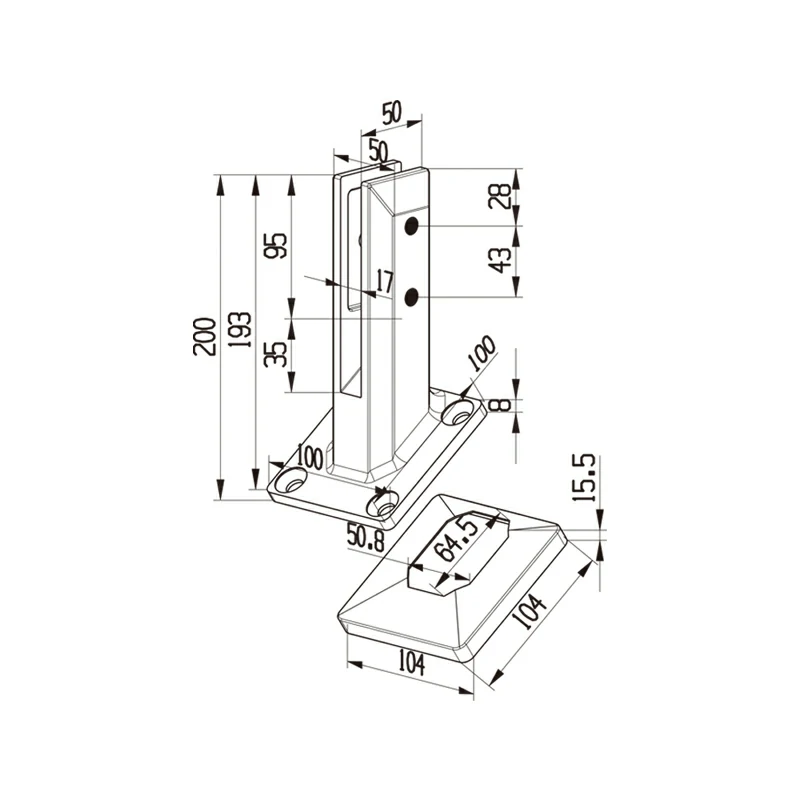

Outline Dimension |
200mm*104mm*104mm |
|
Glass Thickness |
12mm |
|
Weight |
2.23Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex Stainless Steel 2205, Stainless Steel 304/316 |
|
Application |
Bevel / Slop |
|
Casting Process |
Siica Sol Technics Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The black glass spigot has an adjustable function at the clevis, which can facilitate the installation of workers when the ground is not level.
The angled base floor black glass spigot is equipped with 3 different types of underlay gaskets, which can be used for 35° (optional gaskets 30°, 40°) stairs.
Angled Base Floor Glass Spigots are specially designed for stairs, which can perfectly fit the stairs and glass, and the installation is more beautiful.
