Glass Fence Spigot

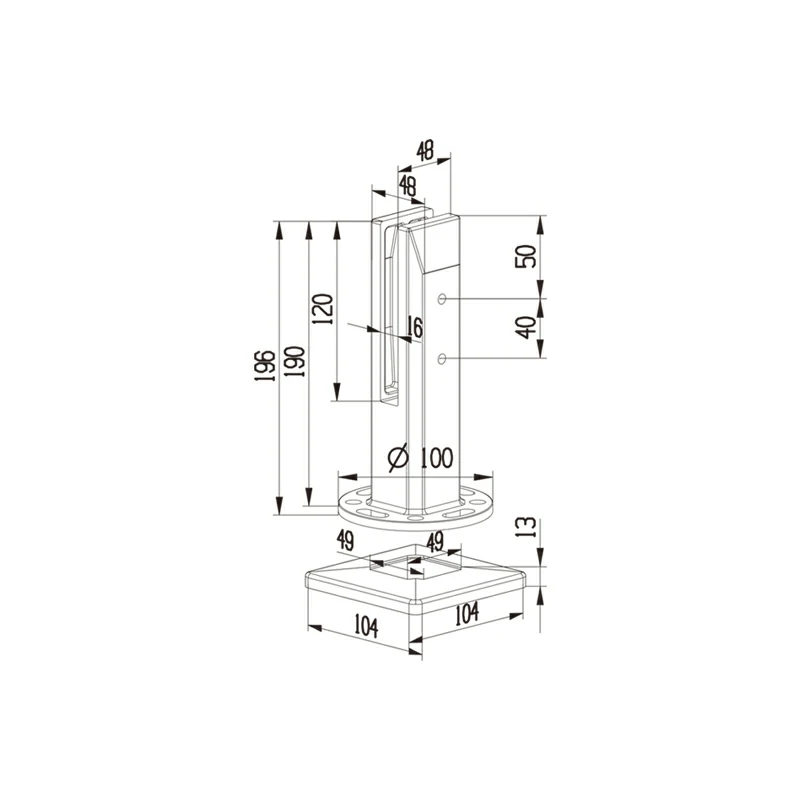

Glass Fence Spigot Structure
Glass Fence Spigot Glass Fence Spigot Structure

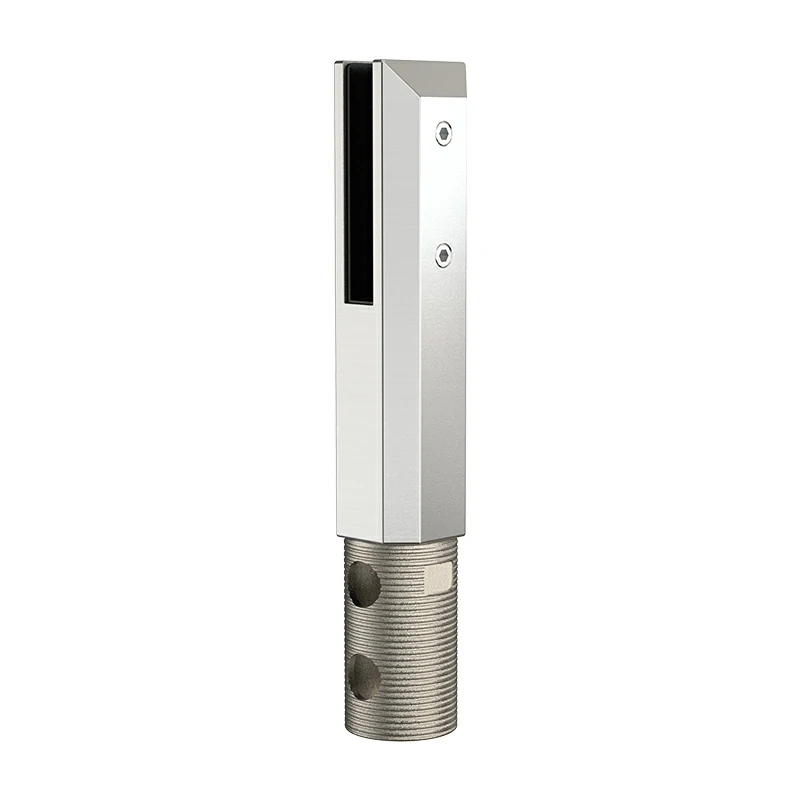

Square Base Round Post Glass Spigot

Part No. LS-OSF

Glass Thickness 12mm
Weight 1.78Kg
Outline Dimension 196mm*104mm*104mm
Material 2205/304/316
Application: Outdoor glass railing, Fence, Balcony railing, Pool fence, Stair handrail, Garden fence, etc.

Glass Spigot Description

This Square Base Round Post Glass Fence Spigot is used for glass below 12mm, suitable for outdoor glass railings, fences, balcony guardrails, swimming pool guardrails, staircase handrails, garden guardrails. These glass spigots have a square base that provides stability and support, while the post that holds the glass panel is round. This combination of square base and round post creates a modern and aesthetically pleasing look for glass fences.

Glass fence spigot is designed to secure and support the glass panels that form the fence, providing a sleek and modern look while ensuring structural stability. They are typically made of materials like stainless steel, offering durability and resistance to corrosion, which is particularly important for outdoor and poolside applications. These spigots come in various designs to accommodate different installation requirements.

Glass Spigot Specifications

Product Name

Square Base Round Post Glass Clamp

Outline Dimension

196mm*104mm*104mm

Glass Thickness

12mm

Weight

1.78Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Outdoor Glass Railing, Fence, Balcony Railing, Pool Fence, Stair Handrail, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Glass Fence Spigot Package

Note

The Square Base Round Post Glass Fence Spigot is suitable for concrete floors and poured concrete floors. The glass spigot is an economical product, which reduces the weight of the product as much as possible in order to reduce the cost, while ensuring that it meets the customer's needs for maximum load-bearing capacity.

These spigots are typically installed on a solid surface such as concrete or a sturdy base. The square base is fixed to the surface, providing a stable foundation for the round post that holds the glass panel in place. Proper installation is essential to ensure the structural integrity of the glass fence.

Glass Fence Spigot Application
