Stainless Steel Glass Spigot Round

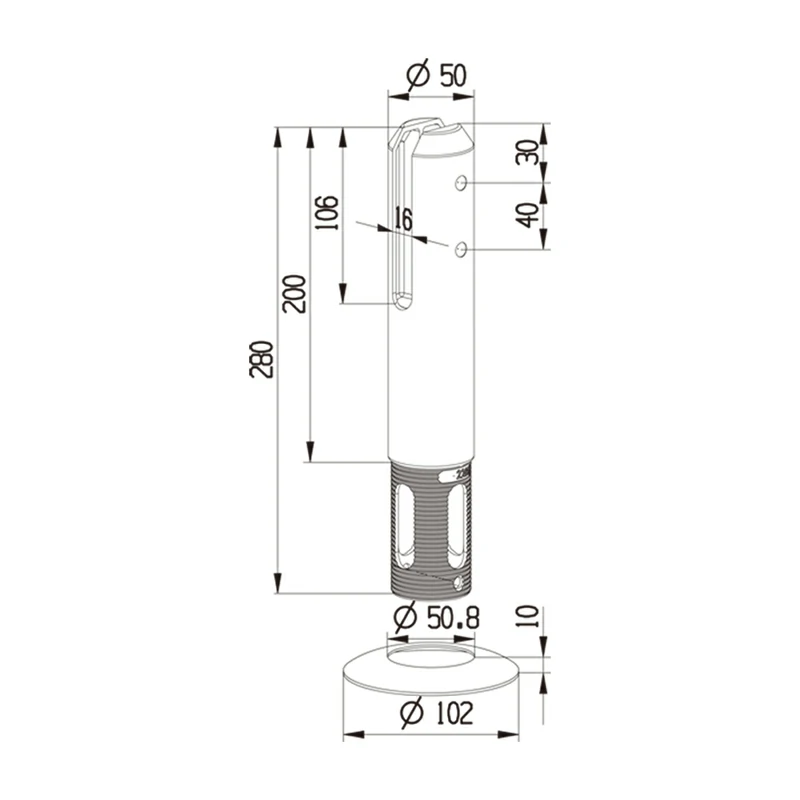

Post In-ground Glass Spigot Structure
Stainless Steel Glass Spigot Round Post In-ground Glass Spigot Structure

Post In-ground Glass Spigot

Part No. LS-BRC-L

Glass Thickness 12mm
Weight 1.20Kg
Outline Dimension 280mm*50mm
Material 2205/304/316
Application: Outdoor glass railing, Fence, Balcony railing, Pool fence, Stair handrail, Garden fence, etc.

Glass Spigot Description

This stainless steel post in-ground round glass spigot is designed to secure glass panels to a vertical post, typically installed in the ground. It's often used in glass railing systems for balconies, staircases, and decks. The spigot is a heavy-duty option with enhanced load-bearing capacity.

Featuring a round post design, the spigot adds a sleek and modern touch to the glass railing system. Its round shape provides a clean and minimalist appearance that aligns well with contemporary architectural styles. The Round Glass Spigot is intended for direct installation into the ground or a concrete foundation, offering a secure and stable base for the glass panels, which helps ensure the safety and integrity of the railing system.

Glass Spigot Specifications

Product Name

Post In-ground Glass Spigot

Outline Dimension

280mm*50mm

Glass Thickness

12mm

Weight

1.20Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Outdoor Glass Railing, Fence, Balcony Railing, Pool Fence, Stair Handrail, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Round Post In-ground Glass Spigot Package

Note

The LS-BRC glass spigot round is an extended version with a longer bottom section buried in the concrete, resulting in a higher load-bearing capacity. These spigots are typically installed by anchoring them into the ground or a concrete base using appropriate fasteners. Proper installation is essential to ensure the stability and safety of the glass railing system.

The glass spigot is an economical product that minimizes the weight of the product to reduce costs while ensuring the maximum load capacity for the customer's needs.

Post In-ground Round Glass Spigot Application
