HomeGlass Railing Glass Spigots Square In-ground Glass Spigot
Square In-ground Glass Spigots 2205 Stainless Steel

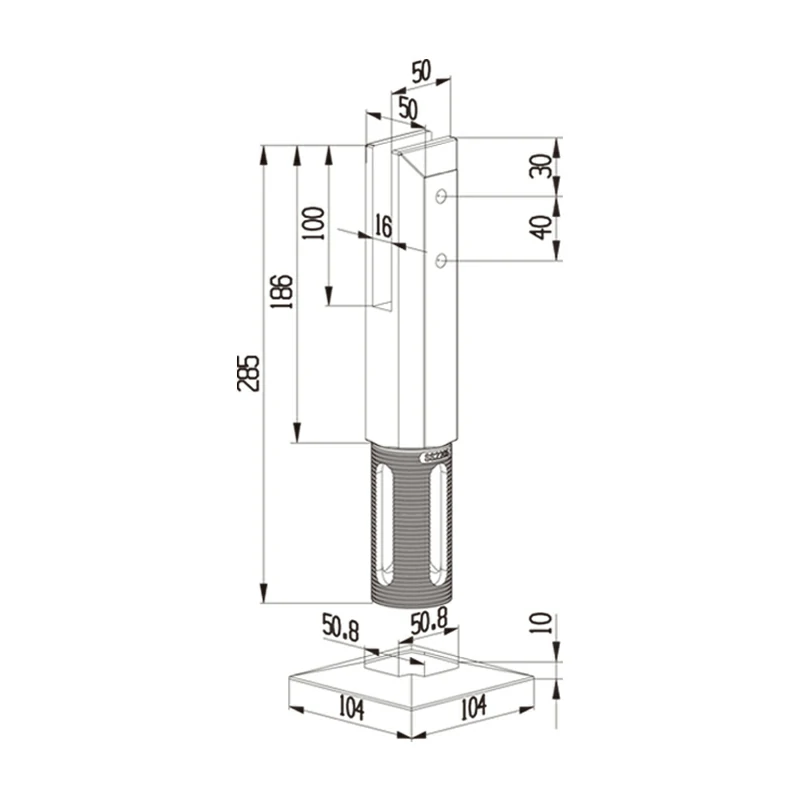

Square In-ground Glass Spigot Structure
Square In-ground Glass Spigots 2205 Stainless Steel Square In-ground Glass Spigot Structure

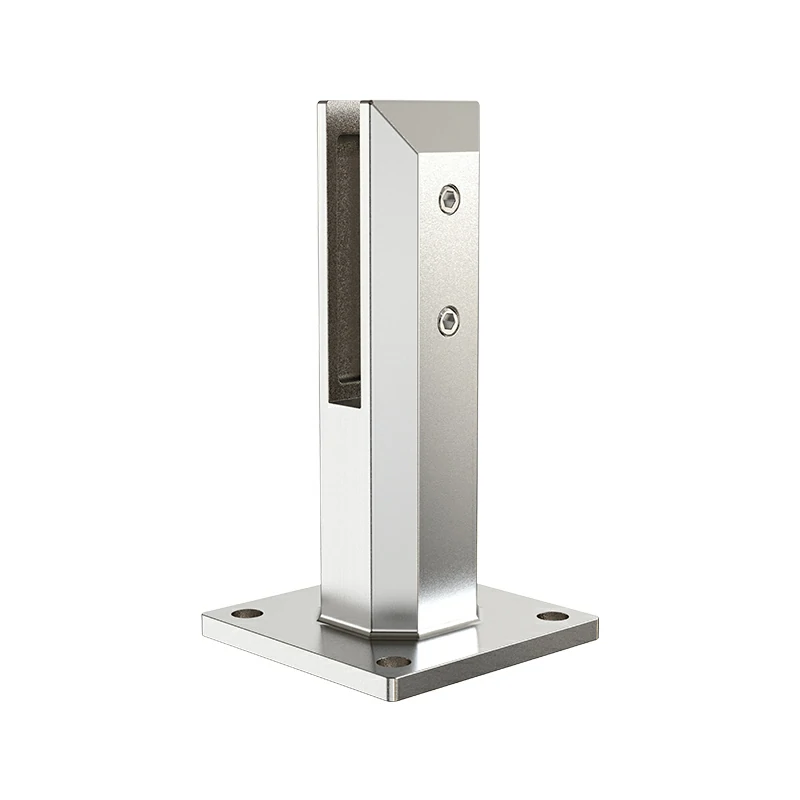

Square In-ground Glass Spigot

Part No. LS-CSC

Glass Thickness 12mm
Weight 2.35Kg
Outline Dimension 285mm*104mm*104mm
Material 2205/304/316
Application Swimming pool fences, Garden fences, etc.

Glass Spigot Description

This Square In-Ground Glass Spigots 2205 are hardware components used to securely mount glass panels to a floor surface. These glass spigots are used for 12mm glass, used in various architectural settings such as outdoor decks, balconies, pool areas, and terraces where a modern and transparent railing solution is desired.

Square in-ground glass spigots 2205 are designed to be installed directly into the ground or a concrete footing, providing a clean and minimalist appearance for glass railing systems. The base plate is designed to be embedded into the floor, creating a clean and seamless look. The square base provides a stable and secure foundation for the glass panel. They are made from high-quality 2205 stainless steel, which offers excellent corrosion resistance and durability.

Glass Spigot Specifications

Product Name

Square In-ground Glass Spigot

Outline Dimension

285mm*104mm*104mm

Glass Thickness

12mm

Weight

2.35Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Swimming Pool Fences, Garden Fences, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Glass Spigots Duplex stainless steel 2205 Package

Note

These galss spigots are typically installed by embedding them into the ground or a concrete foundation, ensuring a secure and stable base for the glass panels. The glass panels are then inserted into the spigots and fixed in place to create a sleek and contemporary railing system.

Spigots come in various finishes, such as brushed stainless steel, polished stainless steel, and black, to complement different decoration styles. Grade 2205 stainless steel requires minimal maintenance, making it a cost-effective choice.

Duplex stainless steel 2205 Square In-ground Glass Spigots Application
