Handrail Spigot - Aleader Machinery
HomeGlass Railing Glass Spigots Post In-ground Glass Spigot

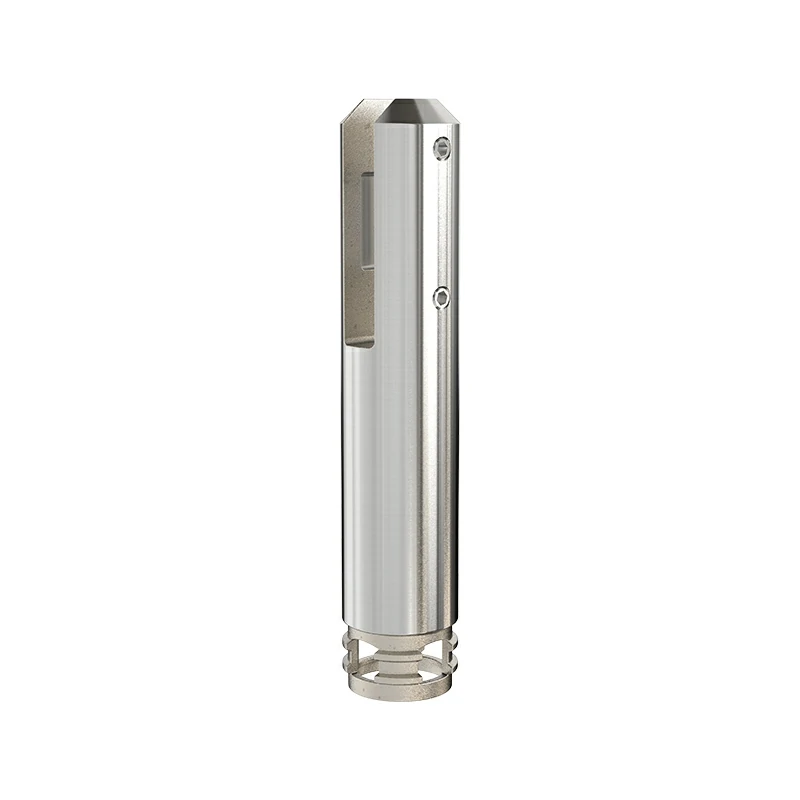

Stainless Steel Post In-ground Handrail Spigot

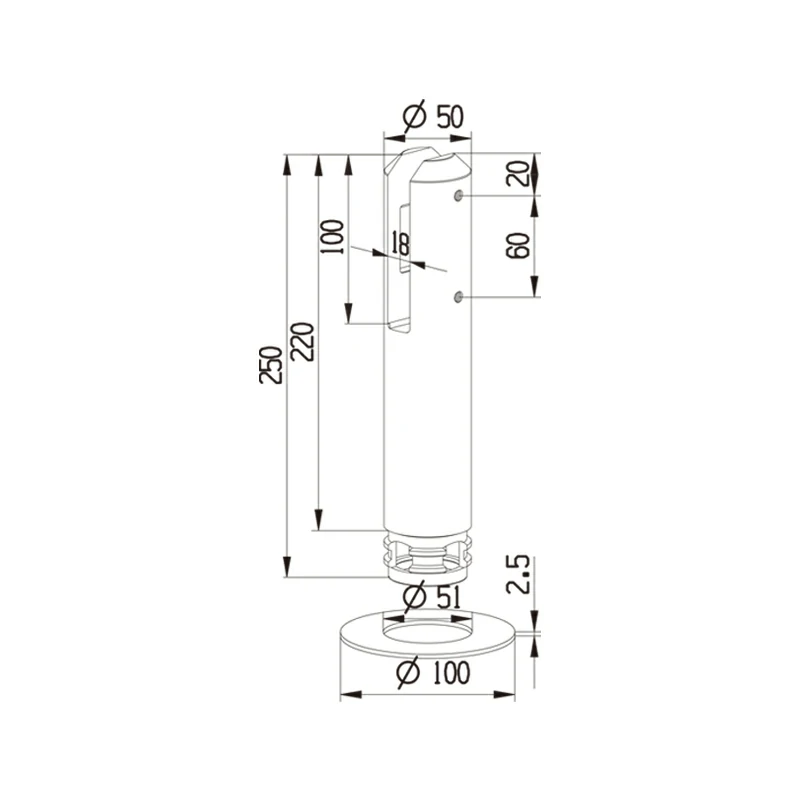

Post In-ground Handrail Spigot Structure
Stainless Steel Post In-ground Handrail Spigot Post In-ground Handrail Spigot Structure

Post In-ground Glass Spigot

Part No. LS-DRC

Glass Thickness 12-15mm
Weight 1.96Kg
Outline Dimension 250mm*50mm
Material 2205/304/316
Application: Outdoor glass railing, Fence, Balcony railing, Pool fence, Stair handrail, Garden fence, etc.

Glass Spigot Description

This Post In-ground Glass Spigot is used for glass 12-15mm, suitable for outdoor glass railings, pool fencing balconies, decks, and staircase handrails. This handrail spigot is an economical model, under the premise of ensuring to meet the maximum load-bearing capacity of the customer demand, reduce the weight of the product as much as possible in order to reduce costs.

In-ground glass handrail spigots are designed to be embedded into the ground, providing a secure anchor point for the glass handrail. The top portion of the spigot securely holds the glass panel in place, often using a clamp or screw mechanism. They are available in a variety of finishes to match any decoration.This design eliminates the need for additional posts or supports, creating a clean and minimalist look for the handrail system.



Glass Spigot Specifications

Product Name

Post In-ground Glass Spigot

Outline Dimension

250mm*50mm

Glass Thickness

12-15mm

Weight

1.96Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Outdoor Glass Railing, Fence, Balcony Railing, Pool Fence, Stair Handrail, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Stainless Steel Post In-ground Handrail Spigot Package

Note

These glass spigots are typically installed by embedding them into the ground or a concrete base, ensuring a strong and stable connection for the handrail. Proper installation is essential to ensure the structural integrity of the handrail system and the safety of users.

In-ground glass handrail spigot is made from durable stainless steel, ensuring long-lasting. Stainless steel is relatively easy to maintain and clean, making it a practical choice for handrail systems that may be exposed to outdoor elements.

Post In-ground Glass Spigot Application
