Home Glass Railing Glass Spigots Post In-ground Round Glass Spigot
Stainless Steel Post In-ground Round Spigot

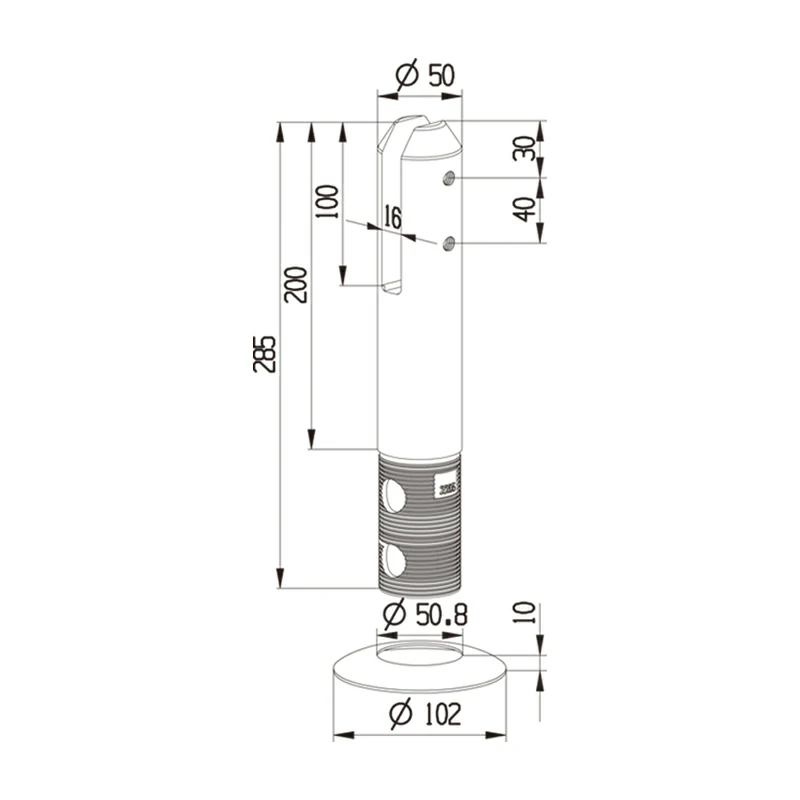

Post In-ground Round Glass Spigot Structure
Stainless Steel Post In-ground Round Spigot Post In-ground Round Glass Spigot Structure

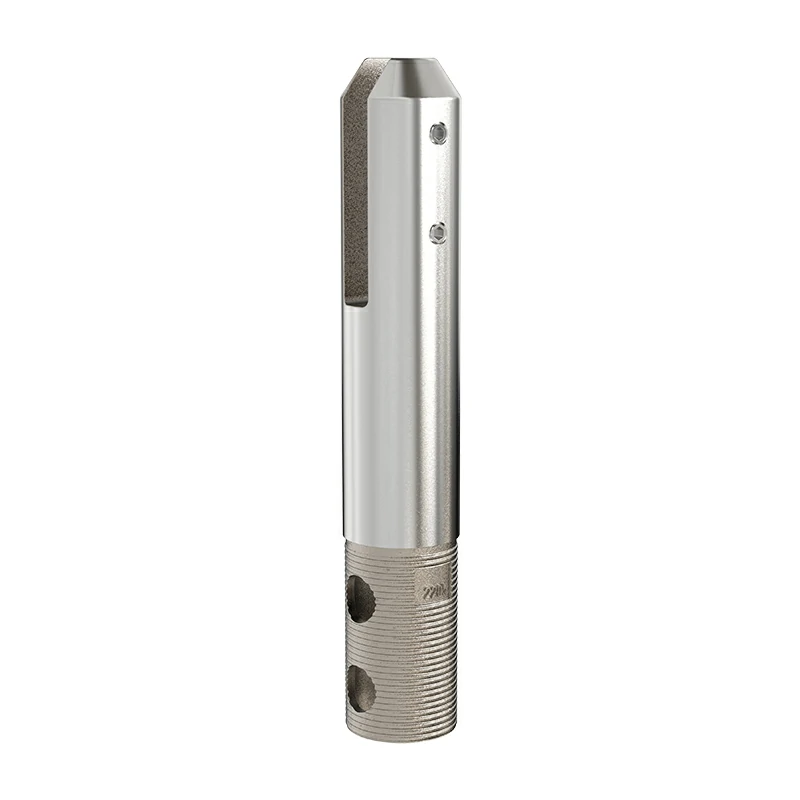

Post In-ground Round Glass Spigot

Part No. LS-ARC

Glass Thickness 12mm
Weight 1.85Kg
Outline Dimension 280mm*50mm
Material 2205/304/316
Application: Outdoor glass railing, Fence, Balcony railing, Pool fence, Stair handrail, Garden fence, etc.

Glass Spigot Description

This Post In-ground Round Glass Spigot is used for glass below 12mm, suitable for outdoor glass railings, fences, balcony railings, swimming pool railings, staircase handrails, garden railings. The Round Spigot is designed to securely hold glass panels in place in a railing system. It is installed into the ground or a concrete base to provide structural support for the glass panels.

The primary function of these glass spigots are to support and secure glass panels within a railing system. It helps create a modern and minimalist look by allowing for uninterrupted views through the glass. The stainless steel post in-ground round glass spigot offers a clean and contemporary aesthetic that complements modern architectural designs. It provides a seamless and transparent barrier while maintaining structural integrity.

Glass Spigot Specifications

Product Name

Post In-ground Glass Spigot

Outline Dimension

280mm*50mm

Glass Thickness

12mm

Weight

1.85Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Outdoor Glass Railing, Fence, Balcony Railing, Pool Fence, Stair Handrail, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

round glass spigot Package

Note

The glass spigot is equipped with grounding wire, with anti-conductivity function, to protect the use of safety. The spigot is an economical product, under the premise of ensuring that it meets the customer's needs for maximum load bearing, reduce the weight of the product as much as possible in order to reduce costs.

The spigot is typically installed by drilling a hole in the ground or concrete base and securing the spigot in place with concrete or epoxy. The glass panel is then inserted into the spigot and secured with appropriate hardware.

Stainless Steel Post In-ground Round Glass Spigots Application
