Square Spigot Floor-standing - Aleader Machinery
HomeGlass Railing Glass Spigots Square Floor-standing Glass Spigot
Stainless Steel Floor-standing Square Spigot

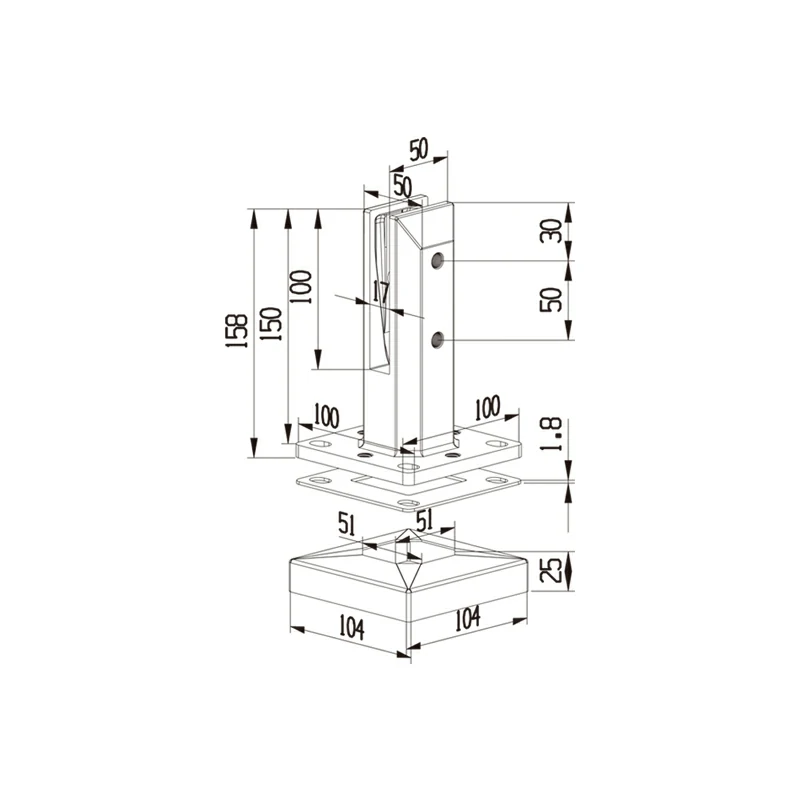

Square Floor-standing Glass Spigot Structure
Stainless Steel Floor-standing Square Spigot Square Floor-standing Glass Spigot Structure

Square Floor-standing Glass Spigot

Part No. ASD-1

Glass Thickness: 12mm
Weight 2.08Kg
Outline Dimension 158mm*104mm*104mm
Material 2205/304/316
Application:

Large display windows, Partition glass, Glass fences, etc.

Glass Spigot Description

This Square floor-standing glass spigot is used for 12mm glass, suitable for large display windows, partition glass, glass fences, etc. It is a glass spigot specifically designed to securely attach glass panels to a horizontal floor surface.  Square floor-standing glass spigots have a square-shaped base that is typically mounted directly onto the floor or surface. The spigot itself consists of a vertical post that holds the glass panel securely.

The bottom of this square spigot is equipped with adjustable spacers, which can be convenient for workers to install when the ground is not level, the maximum adjustable height of 12mm, the maximum adjustable tilt angle of 7°.

Glass Spigot Specifications

Product Name

Square Floor-standing Glass Spigot

Outline Dimension

158mm*104mm*104mm

Glass Thickness

12mm

Weight

2.08Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Large Display Windows, Partition Glass, Glass Fences, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Square Floor-standing Glass Spigot Package

Note

When choosing square floor-standing glass spigots, consider the floor surface conditions, ensure the floor surface is stable, level, and can provide a firm grip for the spigots. Consider the drainage and water management around the glass panels to prevent water accumulation and potential hazards.

Installation of square floor-standing glass spigots typically involves securely fixing the spigots to the floor using bolts or screws. The glass panels are then positioned between the spigots and secured in place, creating a seamless and unobtrusive barrier.
