Handrail Joiner Description

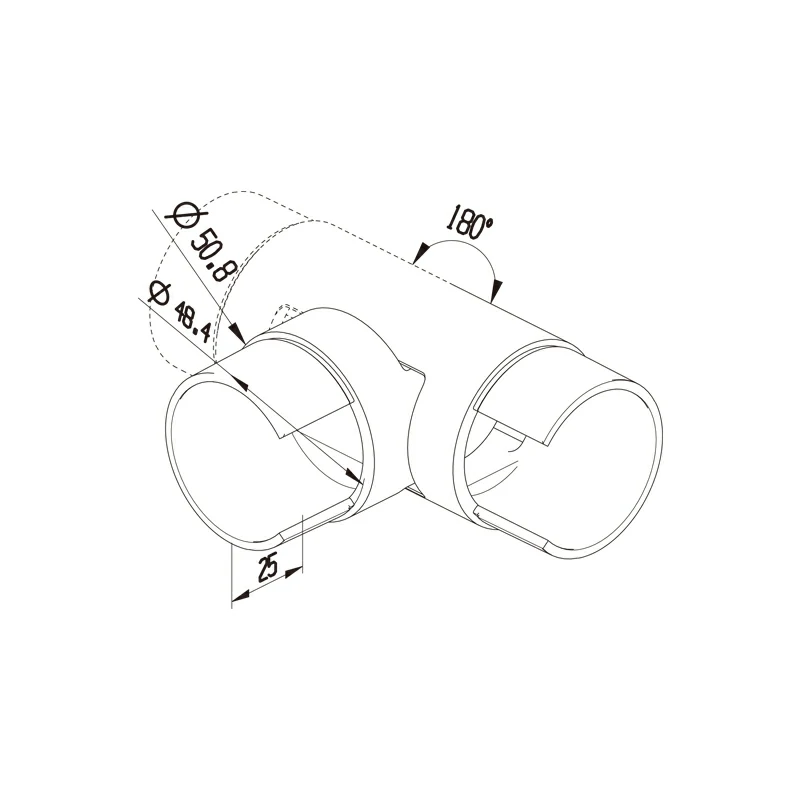

The Slotted Round Rail Up & Down Adjustable 50.8mm Tube Joiner is designed to connect two sections of round-shaped railing together at a vertical angle. The unique feature of this joiner is its slotted design, which allows for easy adjustment of the railing height. Its round top to fit a Φ50.8mm (approximately 2 inch) railing, vertical connection, and can be adjusted both up and down.
The round rail adjustable 50.8mm tube joiner is made of stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for staircases, commercial railings for buildings and public spaces
Handrail Joiner Specifications
|
Product Name |
Round Rail Up & Down Adjustable 50.8mm Tube Joiner |
|
Coupling |
Φ50.8mm |
|
Weight |
0.50Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round rail adjustable 50.8mm tube joiners are available in different stainless steel grades and finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.
