Handrail Connector Description

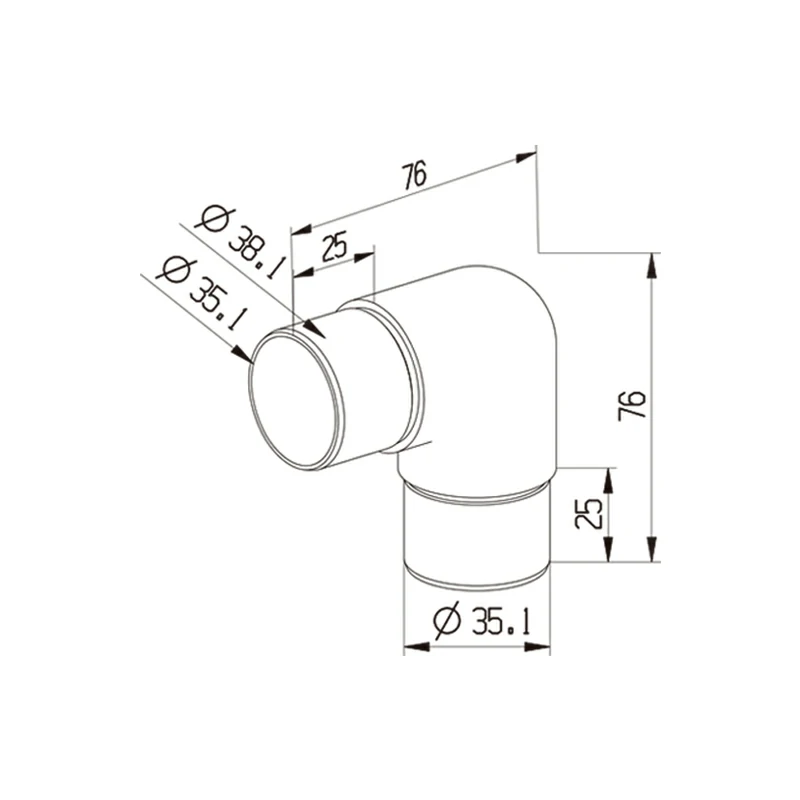

The Round Rail 90 Degree Flush Elbow is designed to connect two sections of round-shaped railing together at a 90-degree angle. The unique feature of this joiner is its flush design, which creates a seamless appearance when connected. Its round top to fit a Φ38.1mm (approximately 1.5 inch) railing, and offers flexibility in railing alignment.
The 90 Degree Flush Elbow is made of high-quality stainless steel for durability and corrosion, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for balconies, decks, and staircases, orcommercial railings for buildings, public spaces, and industrial facilities.
Handrail Connector Specifications
|
Product Name |
Round Rail Flush Elbow |
|
Coupling |
38.1mm*1.5mm |
|
Weight |
0.22Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round rail flush elbows are available in different finishes (polished, satin) to suit various environmental requirements. They are designed to accommodate variations in railing angles, offers flexibility in railing alignment, and ensure the stability and safety of the railing system.
