Handrail Connector Description

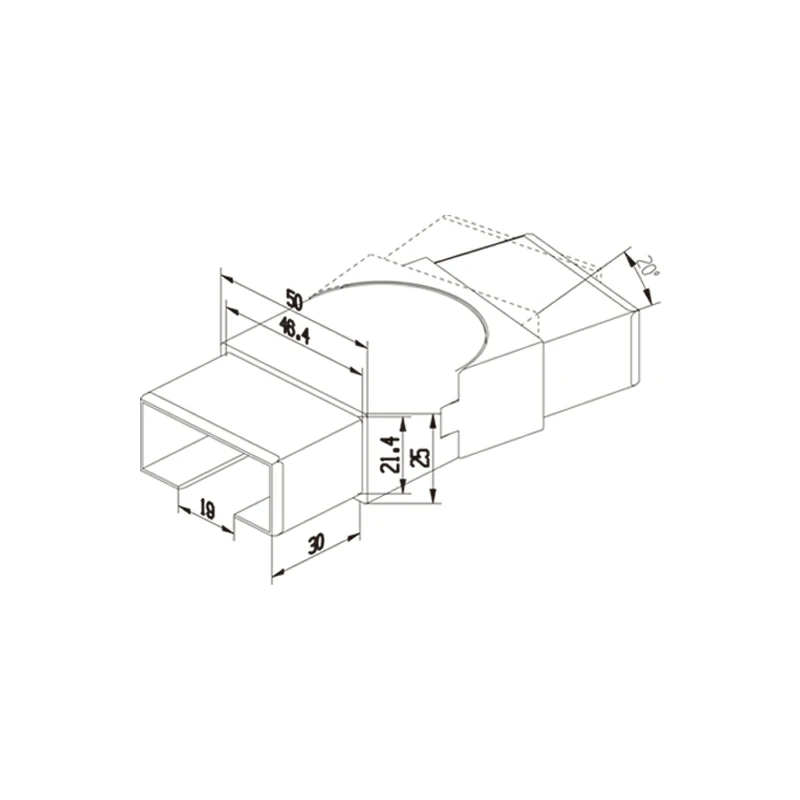

The Square Top Rail Left/Right Adjustable Connector is designed to connect two sections of square-shaped railing together at a horizontal angle. The unique feature of this connector is its adjustable both left and right design, which allows for slight adjustments in the angle of the connection. Its square top to fit a 50mm x 25mm railing, horizontal connection, and offers flexibility in railing alignment.
The square top rail horizontal adjustable connector is made of high-quality stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for balconies, decks, and staircases, and commercial railings for buildings, public spaces, and industrial facilities.
Handrail Connector Specifications
|
Product Name |
Square Top Rail Horizontal Adjustable Connector |
|
Coupling |
50mm*25mm |
|
Weight |
0.68Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These square adjustable connectors are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.
