Handrail Elbow Description

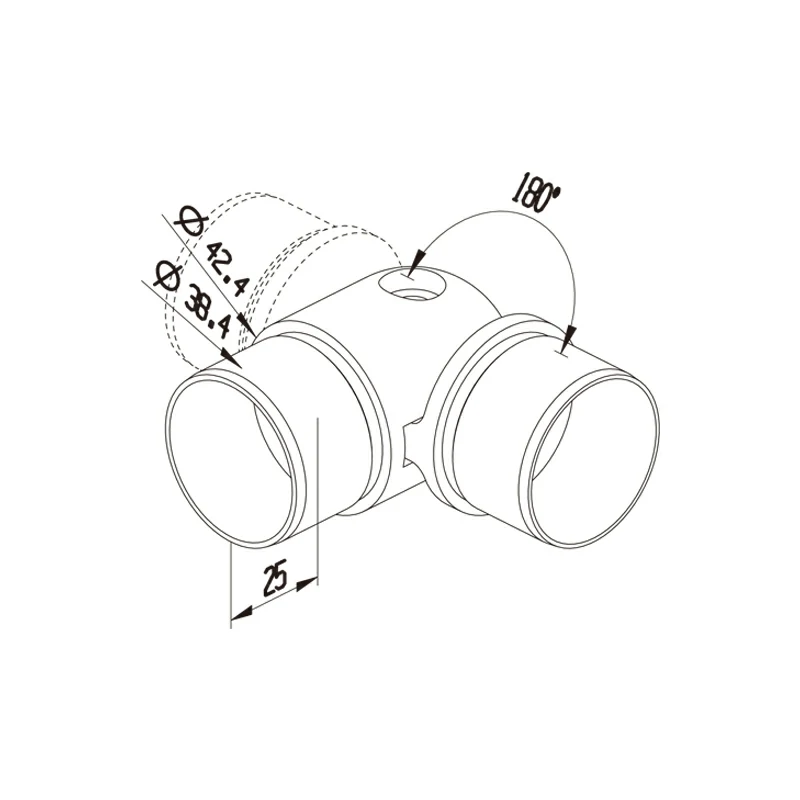

The Round Rail Adjustable Flush Elbow is designed to connect two sections of round-shaped railing together at a 90-degree angle. The unique feature of this joiner is its adjustable design, which allows for slight adjustments in the angle of the connection. Its round top to fit a Φ42.4mm (approximately 1.67 inch) railing, allows for minor adjustments in the angle of the connection, and to create a clean and aesthetic finish.
The adjustable flush elbow is made of stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for staircases, commercial railings for buildings and public spaces.
Handrail Elbow Specifications
|
Product Name |
Round Rail Adjustable Flush Elbow |
|
Coupling |
Φ42.4mm |
|
Weight |
0.41Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round rail adjustable elbows are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.
