Handrail Connector Description

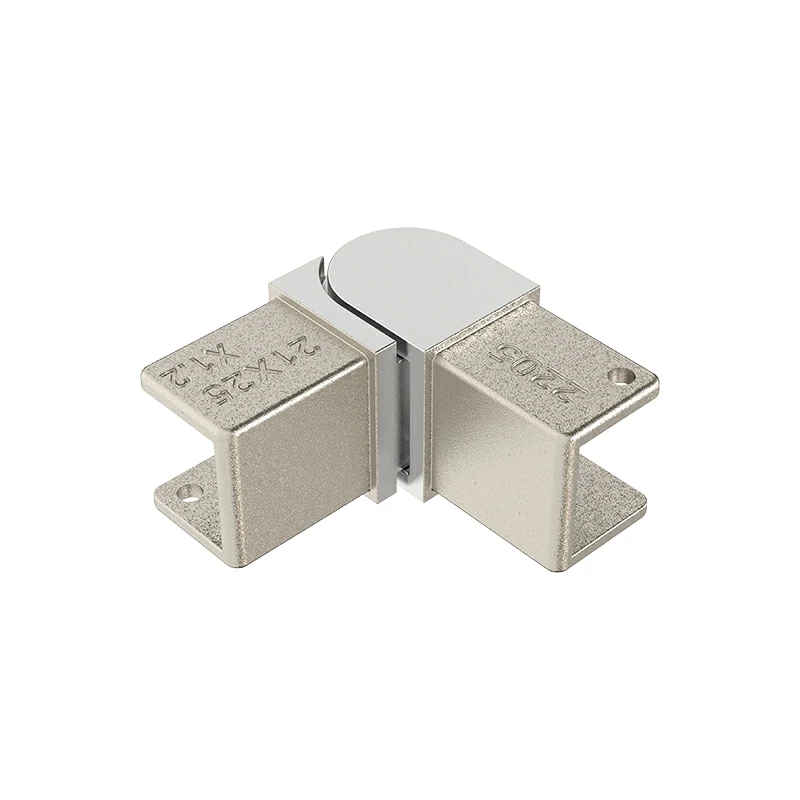

The Vertical Adjustable Handrail Connector for Square Tube is used to connect two sections of square-shaped handrail together at a vertical angle. The unique feature of this connector is its adjustable design, which allows for slight adjustments in the vertical position of the connection. Its square top to fit a square-shaped handrail, vertical connection, and can be adjusted both up and down.
The vertical adjustable handrail connector is made from high-quality stainless steel, which offers durability, corrosion resistance, and a sleek appearance. These handrail fittings are widely used for stair railings, balconies, decks, and porches with vertical balusters and horizontal handrails.
Handrail Connector Specifications
|
Product Name |
Adjustable Vertical Joiner |
|
Coupling |
21mm*25mm |
|
Weight |
0.11Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These handrail connectors are available in different finishes such as classic satin, transparent satin, Mirror, and matte black, to match various design aesthetics. They are designed to be easy to install, select a joiner compatible with the size and square shape of your handrail and baluster tubes, and ensure the connectors have a weight capacity sufficient to support the weight of the handrail and any potential loads on the railing system.
