Handrail Joiner Description

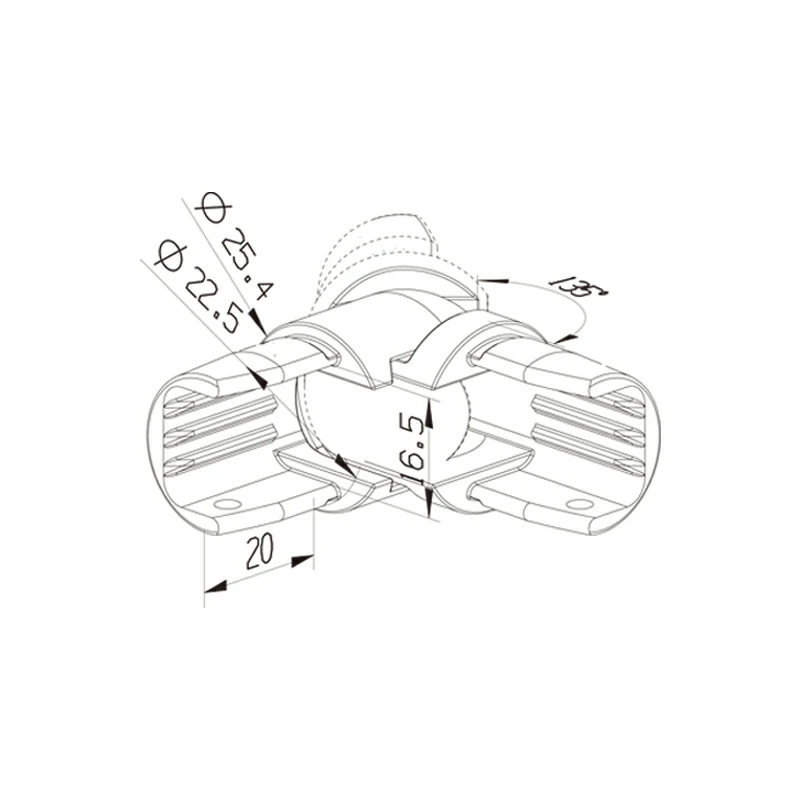

This Round Top Rail Up & Down Adjustable Joiner is used to connect two sections of round-shaped railing together at a vertical angle. The unique feature of this joiner is its ability to be adjusted both upwards and downwards, providing flexibility in installation. Its round top to fit a Φ25.4mm (approximately 1 inch) railing, and ensure the stability and safety of the railing system.
This adjustable round joiner is made of stainless steel for durability and corrosion resistance. These handrail fittings are available in a range of finishes, including classic satin, mirror polish, and matte black.
Handrail Joiner Specifications
|
Product Name |
Rail Up & Down Round Adjustable Joiner |
|
Coupling |
Φ25.4mm |
|
Weight |
0.17Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The adjustable round joiner is commonly used for stair railings, balconies, decks, and porches with vertical balusters and horizontal handrails. They can be installed by drilling/screwing into the top tube of the railing for added joining strength.
