Handrail Connector Description

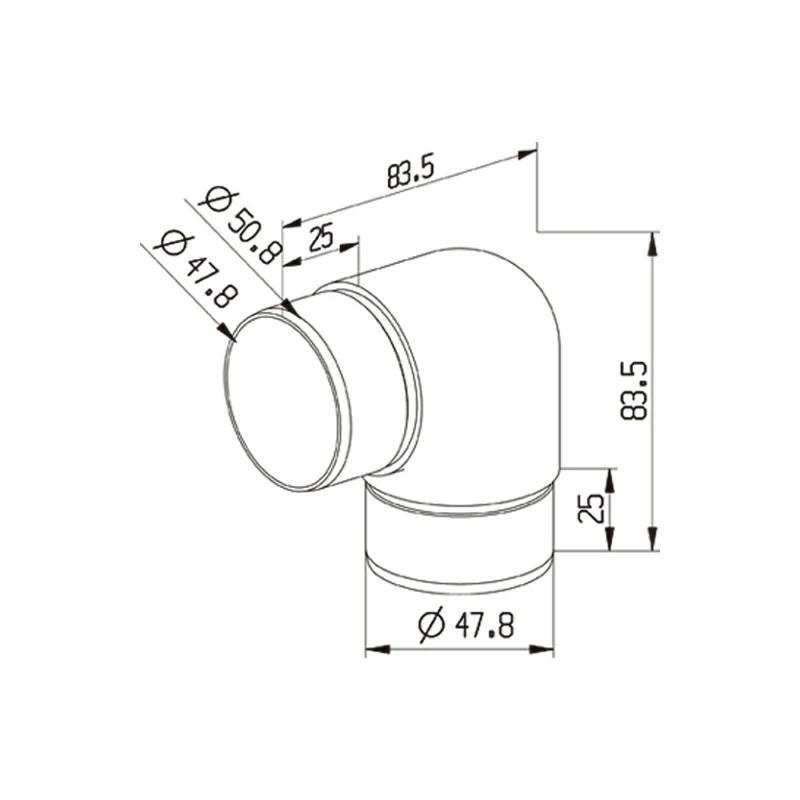

The Round Rail 90 Degree Flush Elbow is designed to connect two sections of round-shaped railing together at a 90-degree angle. Its round top to fit a Φ50.8mm (approximately 2 inch) railing, elbow joint for a 90-degree connection, and provides a seamless appearance.
The Round Rail 90 Degree Flush Elbow is made of stainless steel for durability and corrosion resistance. The unique feature of this joiner is its flush design, which creates a seamless appearance when connected. These handrail fittings are used to residential railings for balconies, decks, and staircases, orcommercial railings for buildings, public spaces, and industrial facilities.
Handrail Connector Specifications
|
Product Name |
Round Rail Flush Elbow |
|
Coupling |
50.8mm*1.5mm |
|
Weight |
0.31Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round rail flush elbows are available in different finishes (polished, satin) to suit various environmental requirements. Ensure that the connectors comply with applicable building and safety codes to meet relevant standards and regulations. Know the load-bearing capacity of the connectors to ensure that they are adequate to support the load of the handrail at the corner to prevent accidents.
