Handrail Joiner Description

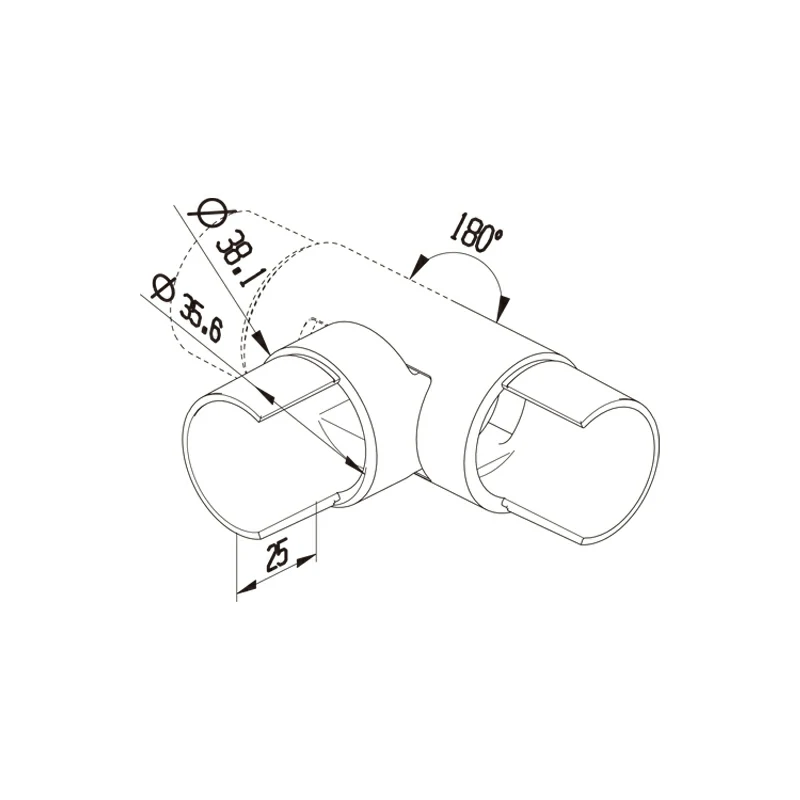

This Up & Down Round Rail Adjustable Joiner is designed to connect two sections of round-shaped railing together at a vertical angle. The unique feature of this joiner is its ability to be adjusted both upwards and downwards, providing flexibility in installation. Its round top to fit a Φ38.1mm (approximately 1.5 inch) railing, accommodate variations in railing height, and ensure the stability and safety of the railing system.
The Round Rail Adjustable Joiner is made of stainless steel for durability and corrosion resistance. These handrail fittings are used to residential railings for staircases, commercial railings for buildings and public spaces.
Handrail Joiner Specifications
|
Product Name |
Round Rail Adjustable Joiner Up & Down |
|
Coupling |
Φ38.1mm |
|
Weight |
0.38Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These handrail adjustable joiners are available in different stainless steel grades and finishes (polished, satin) to suit various environmental requirements. They are designed to be easy to install and provide a clean, safe, and attractive appearance for the stair railing system.
