Handrail Connector Description

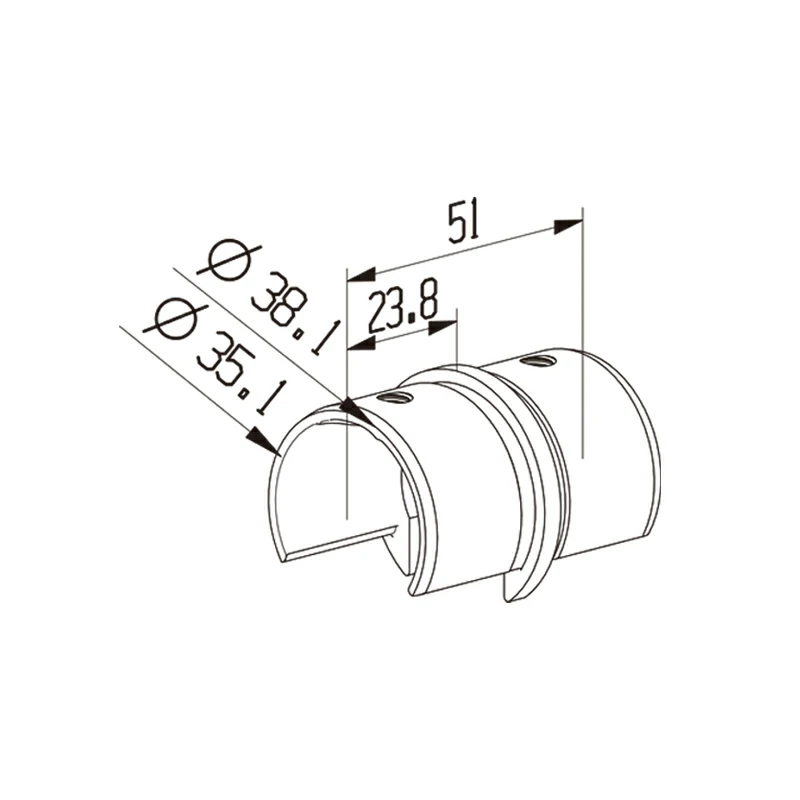

The Φ38.1mm 180º Slot Tube Round Cap Rail Connector is designed to connect two sections of round-shaped railing together at a 180-degree angle. Its round top to fit a Φ38.1mm (approximately 1.5 inch) railing, horizontal connection, and provides for easy installation and adjustment.
The round cap rail connector is made of high-quality stainless steel for durability and corrosion, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for balconies, decks, and staircases, orcommercial railings for buildings, public spaces, and industrial facilities.
Handrail Connector Specifications
|
Product Name |
Round Top Cap Rail Connector |
|
Coupling |
Φ38.1mm |
|
Weight |
0.08Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round top cap rail connectors are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.
