Handrail Connector Description

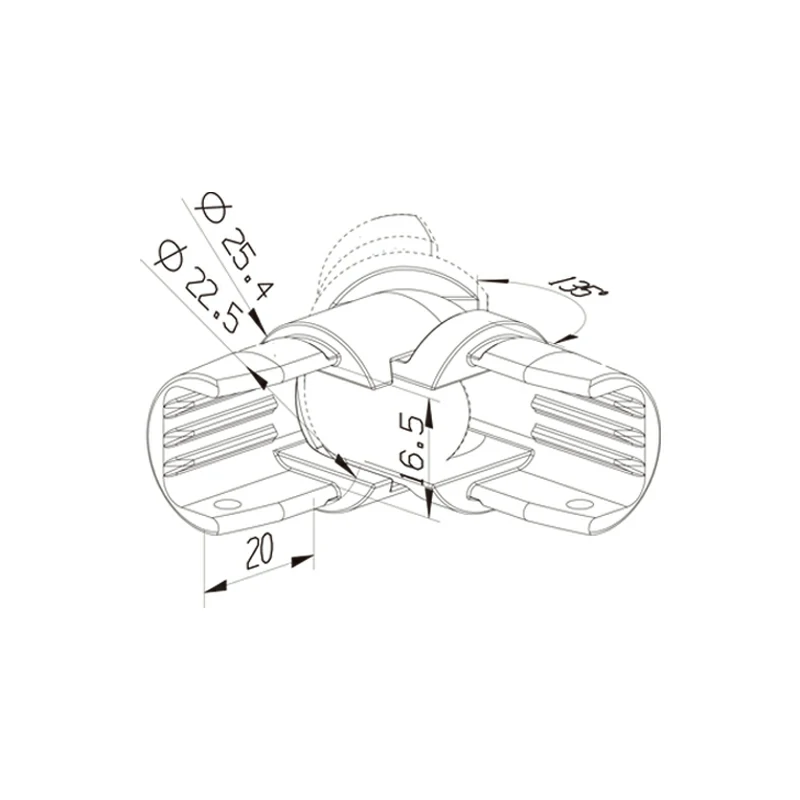

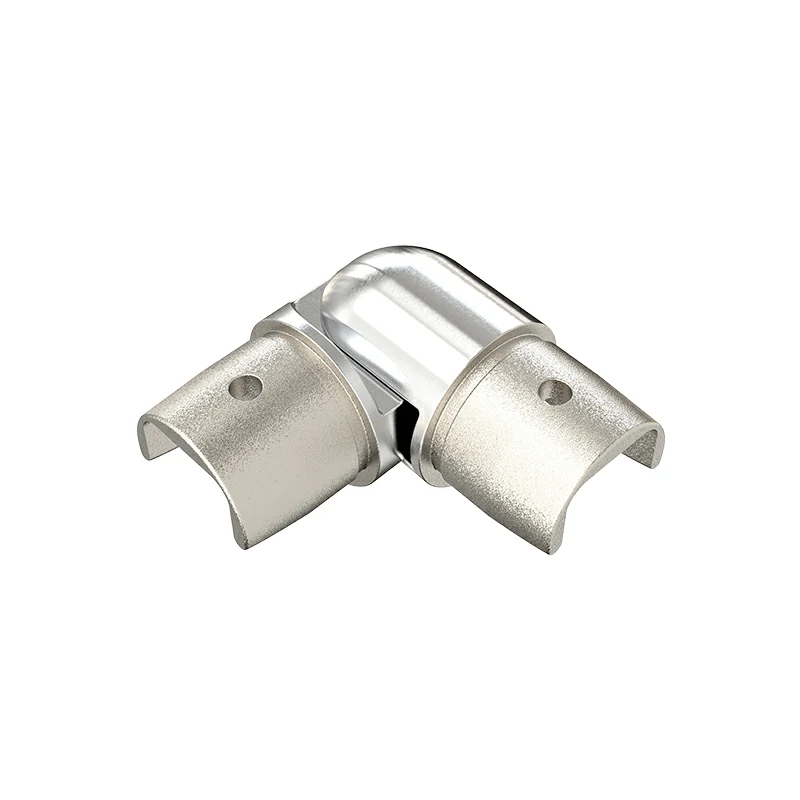

This Rail Left & Right Adjustable Round Tube Connector is used to connect two sections of round-shaped railing together at a horizontal angle. The unique feature of this connector is its ability to be adjusted both left and right, providing flexibility in installation. Its round top to fit a Φ25.4mm (approximately 1 inch) railing, and ensure the stability and safety of the railing system.
This adjustable round tube connector is made of stainless steel for durability and corrosion resistance. These handrail fittings are available in a range of finishes, including classic satin, mirror polish, and matte black.
Handrail Connector Specifications
|
Product Name |
Rail Left & Right Adjustable Round Tube Connector |
|
Coupling |
Φ25.4mm |
|
Weight |
0.17Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The adjustable round tube connector is commonly used for stair railings, balconies, decks, and porches with vertical balusters and horizontal handrails. They can be installed by drilling/screwing into the top tube of the railing for added joining strength.
