Handrail Connector Description

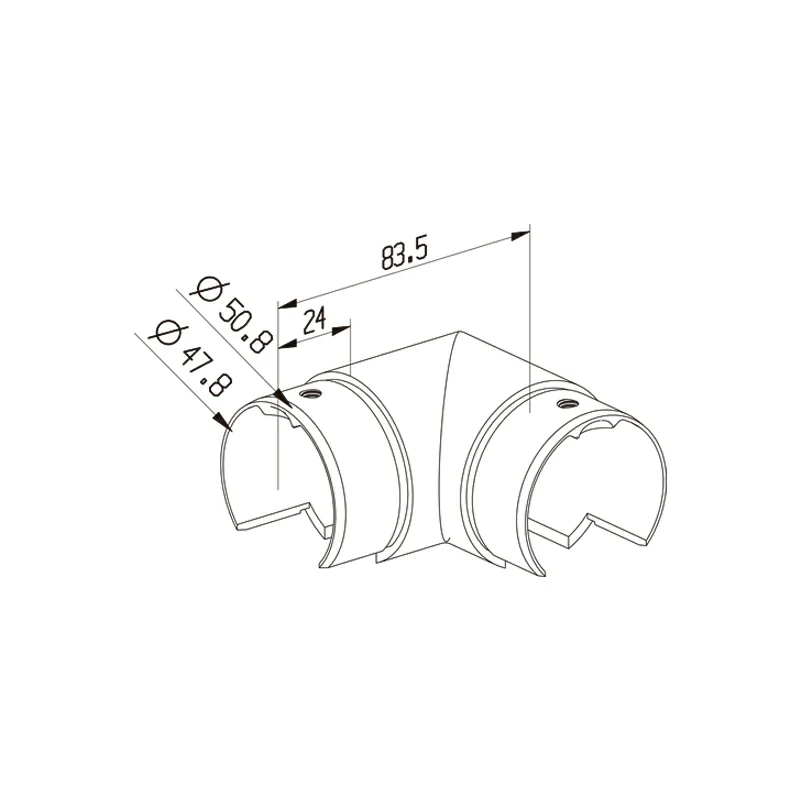

The Round Top Rail 90 Degree Slot Tube Connector is designed to connect two sections of round-shaped railing together at a 90-degree angle.The unique feature of this connector is its slotted design, which allows for easy installation and adjustment. Its round top to fit a Φ50.8mm (approximately 2 inch) railing, elbow joint for a 90-degree connection, and provides for easy installation and adjustment.
The round top rail slot tube connector is made of high-quality stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for balconies, decks, and staircases, orcommercial railings for buildings, public spaces, and industrial facilities.
Handrail Connector Specifications
|
Product Name |
Round Top Rail 90 Degree Slot Tube Handrail Connector |
|
Coupling |
50.8mm*1.5mm |
|
Weight |
0.303Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These round top rail slot tube handrail connectors are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, offers flexibility in railing alignment, and ensure the stability and safety of the railing system.
