Handrail Joiner Description

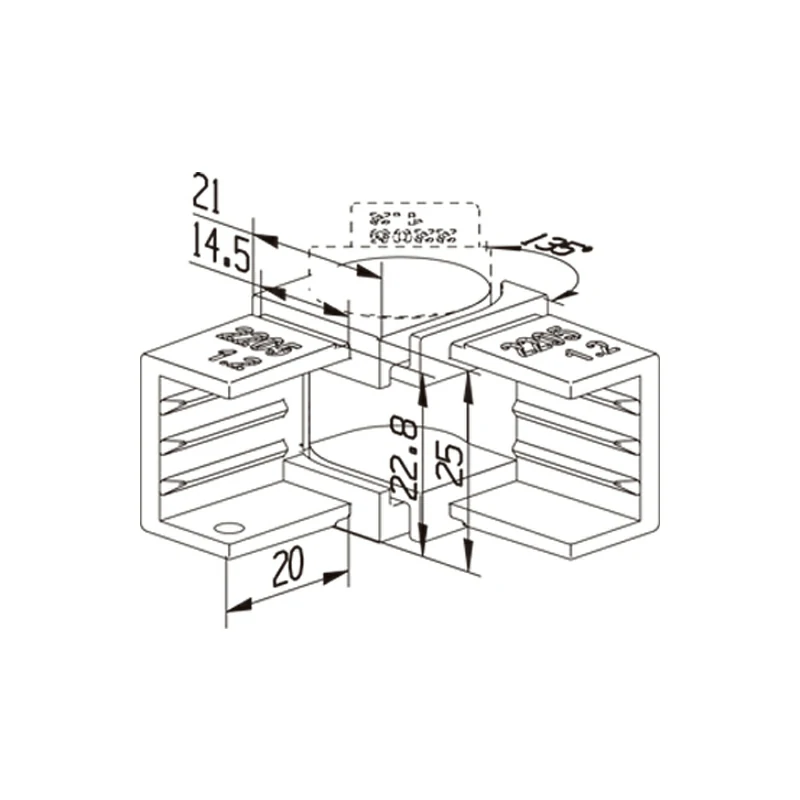

The Square Top Rail 25x21mm Up & Down Adjustable Joiner is used to connect two sections of square-shaped railing together at a vertical angle. The unique feature of this square joiner is its ability to be adjusted both upwards and downwards, providing greater flexibility in installation.
This square adjustable joiner is made of stainless steel for durability and corrosion resistance. These handrail fittings are available in a range of finishes, including classic satin, mirror polish, and matte black.
Handrail Joiner Specifications
|
Product Name |
Rail Up & Down Square Adjustable Joiner |
|
Coupling |
21mm*25mm |
|
Weight |
0.14Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
These square adjustable joiners are commonly used for stair railings, balconies, decks, and porches with vertical balusters and horizontal handrails. They can be installed by drilling/screwing into the top tube of the railing for added joining strength.
