Handrail Joiner Description

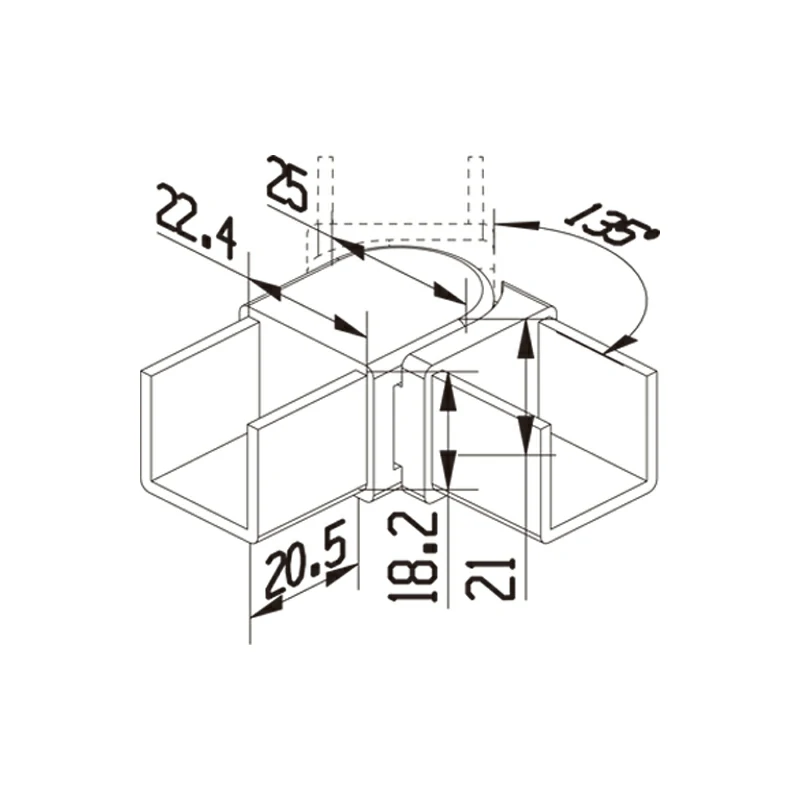

This Rail Left & Right Adjustable Square Tube Joiner is used to connect two sections of square-shaped railing together at a horizontal angle. The unique feature of this connector is its ability to be adjusted both left and right, providing flexibility in installation. Its square top to fit a fit a 25mm x 21mm railing. It is particularly valuable in settings where handrails need to accommodate varying angles or slopes, such as on staircases or ramps.
The adjustable square tube joiner is made from stainless steel, this joiner is resistant to corrosion and rust, making it suitable for both indoor and outdoor use. These handrail fittings are available in a range of finishes, including classic satin, mirror polish, and matte black.
Handrail Joiner Specifications
|
Product Name |
Rail Left & Right Adjustable Square Tube Joiner |
|
Coupling |
21mm*25mm |
|
Weight |
0.16Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The adjustable square tube joiner is typically used in staircases, balconies, or along ramps where precise angles are needed to meet building codes and ensure user safety. Ensure that the joiner is compatible with the specific dimensions and material of your handrail. While stainless steel is low maintenance, regular cleaning is recommended to maintain its appearance and prevent buildup of dirt and grime.
