Home Glass Railing Handrail Square Top Rail 25x21mm Vertical Adjustable Joiner-Left
Stainless Steel Square Top Rail 25x21mm Vertical Adjustable Joiner Left

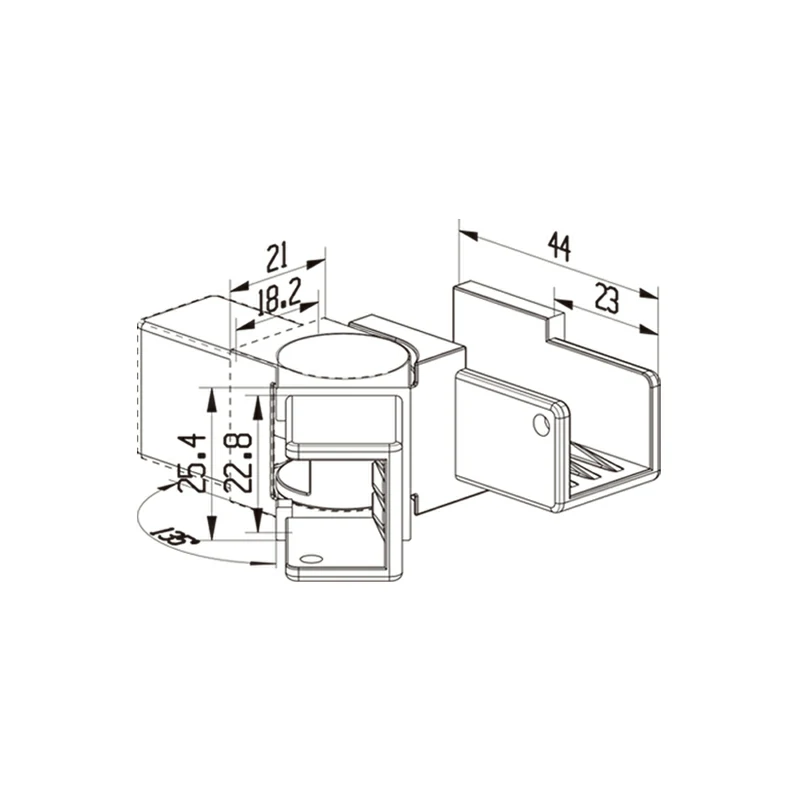

Vertical Adjustable Joiner Structure
Stainless Steel Square Top Rail 25x21mm Vertical Adjustable Joiner Left Vertical Adjustable Joiner Structure

Square Top Rail 25x21mm Vertical Adjustable Joiner-Left

Part No. TR-VCVAJ-L

Coupling: 21mm*25mm
Weight 0.16Kg
Material 2205/304/316
Application: Handrail fence for various scenes, etc.

Handrail Joiner Description

The Square Top Rail Vertical Adjustable Joiner-Left is used to connect two sections of square-shaped railing together at a vertical angle. The handrail vertical joiner is designed for a left-hand corner connection, square top to fit a 25mm x 21mm railing, allows for minor adjustments in railing alignment to accommodate variations in railing angles, to ensure the stability and safety of the railing system.

The handrail vertical adjustable joiner is made from high-quality stainless steel for durability, corrosion resistance, and a polished appearance. These handrail fittings are widely used for stair railings, balconies, decks, and porches with horizontal balusters and handrails.

Handrail Joiner Specifications

Product Name

Square Top Rail Vertical Adjustable Joiner-Left

Coupling

21mm*25mm

Weight

0.16Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Handrail fence for various scenes, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The square top rail vertical joiner adjustable left is designed to be easy to install, select a joiner compatible with the size and square shape of your handrail and baluster tubes, and ensure the connectors have a weight capacity sufficient to support the weight of the handrail and any potential loads on the railing system.

Adjustable Handrail Joiner Application
