Handrail Joiner Description

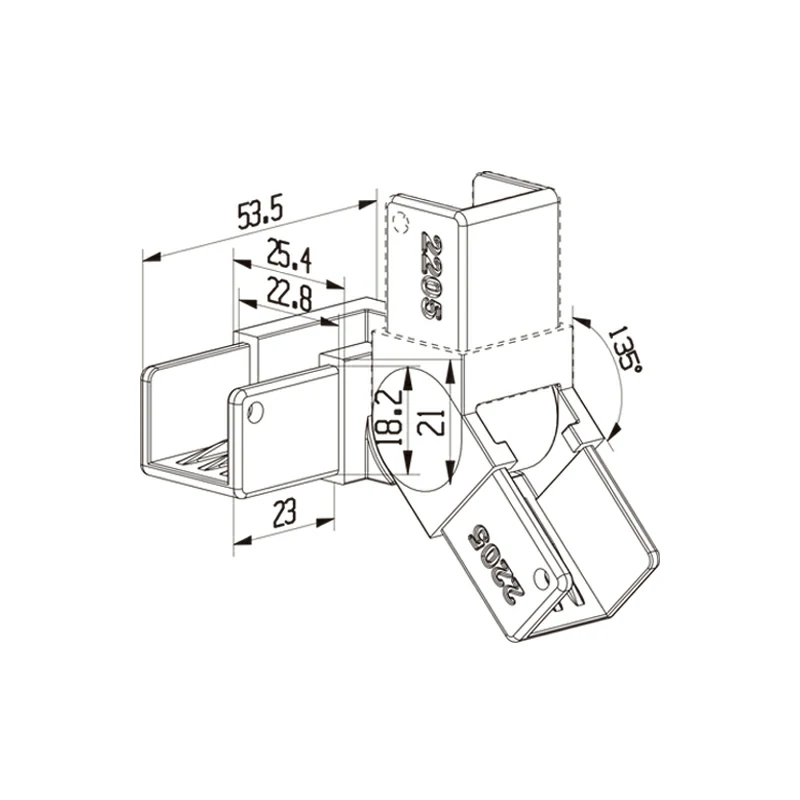

Stainless Steel Square Top Rail Vertical Joiner Adjustable Right is used to connect two sections of square-shaped railing together at a vertical angle. The handrail adjustable vertical joiner is designed for a right-hand corner connection, square top to fit a 25mm x 21mm railing, allows for minor adjustments in railing alignment to accommodate variations in railing angles, to ensure the stability and safety of the railing system.
The handrail joiner adjustable is made from high-quality stainless steel for durability, corrosion resistance, and a polished appearance. These handrail fittings are widely used for stair railings, balconies, decks, and porches with vertical balusters and handrails.
Handrail Joiner Specifications
|
Product Name |
Square Top Rail Vertical Joiner Adjustable Right |
|
Coupling |
21mm*25mm |
|
Weight |
0.18Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Handrail fence for various scenes, etc. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The square top rail adjustable vertical joiner-right is designed to be easy to install, select a joiner compatible with the size and square shape of your handrail and baluster tubes, and ensure the connectors have a weight capacity sufficient to support the weight of the handrail and any potential loads on the railing system.
