Wall Bracket Description

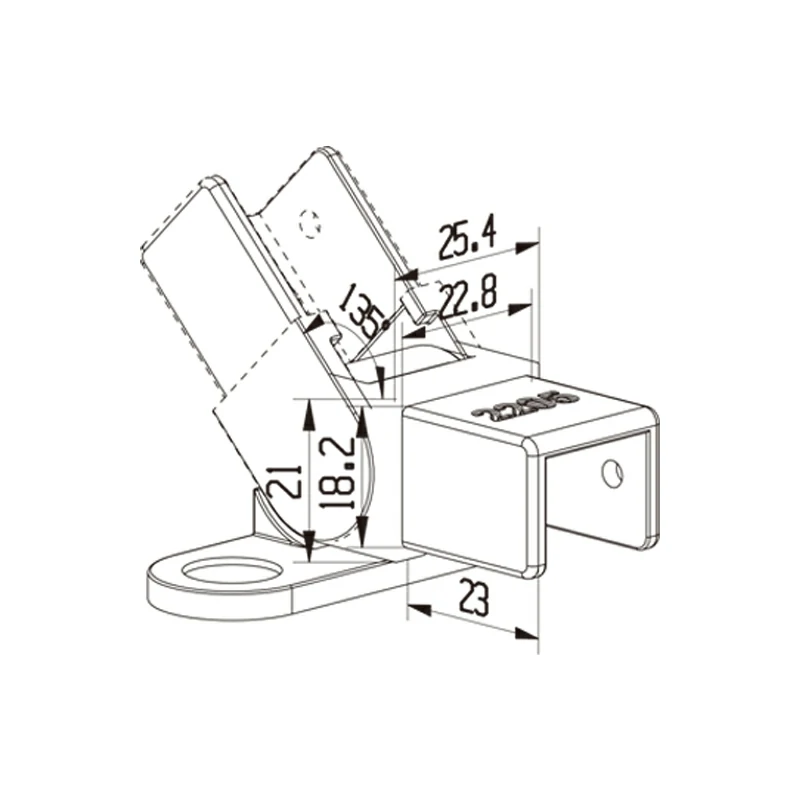

The Stainless Steel Square Top Wall Rail Mounting Bracket Vertical Adjustable-Left is designed to support a square-shaped handrail (with dimensions of 23mm by 21mm) on a wall. The wall bracket can be adjusted to accommodate different railing post positions while maintaining a left-side orientation.
This wall rail mounting bracket is designed to secure handrails to walls and allows for vertical adjustment to align with different heights or angles, and ensure the stability and safety of the railing system. These handrail brakcets are available in different finishes such as classic satin, transparent satin, Mirror, and matte black, to match various design aesthetics.
Wall Bracket Specifications
|
Product Name |
Square Top Wall Rail Mounting Bracket Vertical Adjustable-Left 23x21mm |
|
Coupling |
21mm*25mm |
|
Weight |
0.11Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for use in a variety of environments, including homes, commercial buildings, and medical facilities. |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Installing square top wall rail mounting bracket vertical adjustable-left typically involves securing the bracket to a wall using appropriate fasteners. Secure the bracket to the wall using suitable fasteners, which should be chosen based on the wall material (e.g., drywall, concrete, wood). The handrail is then attached to the square top of the bracket, possibly requiring additional fastening mechanisms like screws or bolts.
