90 Degree Handrail Connector

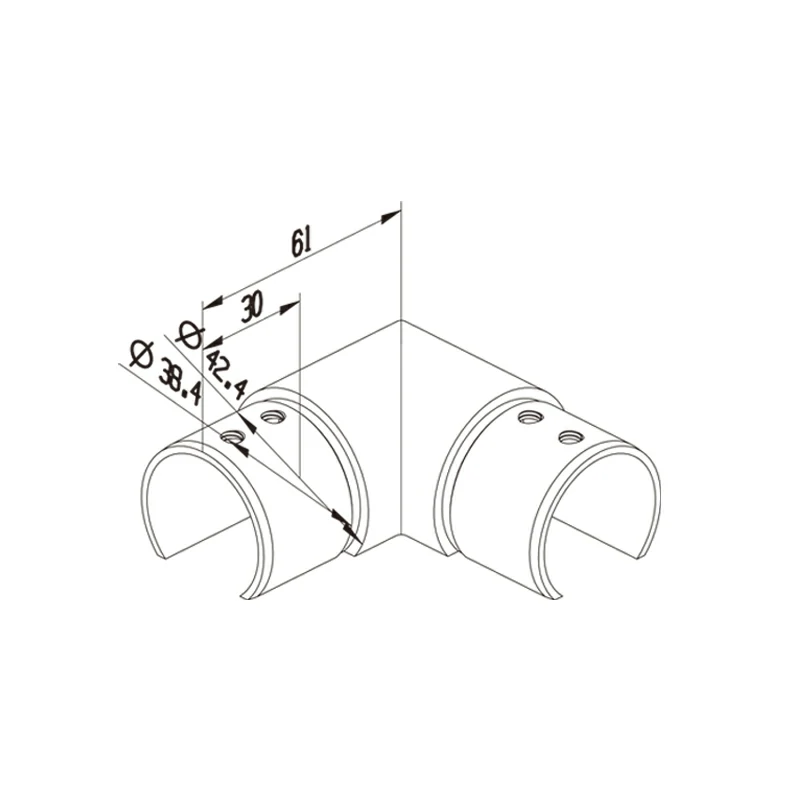

90 Degree Handrail Connector Structure
90 Degree Handrail Connector 90 Degree Handrail Connector Structure

Handrail Right Angle Corner Connector

Part No. LS-NTR-R42.4-3

Coupling: Φ42.4mm
Weight 0.29Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

90-degree handrail connector is a component used in handrail construction to create a right-angle turn or corner in the handrail system. This connector allows two handrail sections to be joined together at a 90-degree angle, enabling the handrail to change direction around corners or at the ends of staircases.

The 90-degree handrail connector is designed to provide a secure and stable connection between the handrail sections while maintaining the structural integrity of the overall handrail system. It is an essential component for ensuring the safety and functionality of the handrail, particularly in architectural and construction applications where precise angles and seamless transitions are required. These handrail fittings are available in various finishs, and are often designed to complement the aesthetic and design requirements of the handrail system.



Handrail Connector Specifications

Product Name

Handrail Right Angle Corner Connector

Coupling

Φ42.4mm

Weight

0.29Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

There are different types of corner connectors available, each with its own advantages and installation methods. The best type of connector for your project will depend on factors like the handrail material, size, desired aesthetics, and budget.
Ensure that connections comply with applicable building and safety codes to meet relevant standards and regulations. Understand the load capacity of the connectors to ensure that they are adequate to support the load of the handrail at the corners to prevent accidents.
