Handrail Tube Description

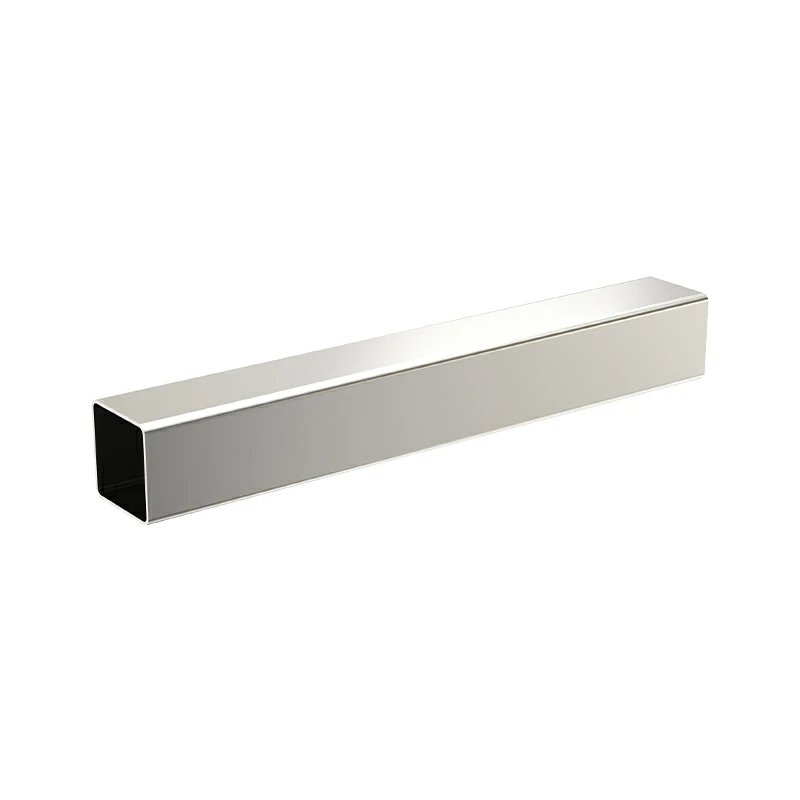

Stainless Steel Handrail Square Tubes are known for their clean and angular appearance, making them suitable for modern architectural designs. The square shape of the tube can complement contemporary interior or exterior spaces, providing a stylish and sophisticated touch to the overall design. Square Handrail Tubes serve as the main structural component of a handrail system, offering support and safety for individuals moving along stairs, ramps, balconies, or other elevated areas. The square shape provides a firm and secure gripping surface for users.
Handrail Tube Parameter
|
ltem Number |
External size (mm) |
Internal Size (mm) |
Thickness (mm) |
|
LS-S26-M/S/B/G/W |
38.1*38.1 |
35.1*35.1 |
1.5 |
|
LS-S27-M/S/B/G/W |
50*50 |
44*44 |
3.0 |
|
LS-S28-M/S/B/G/W |
50*50 |
48*48 |
1.0 |
|
LS-S29-M/S/B/G/W |
38.1*38.1 |
36.1*36.1 |
1.0 |
|
LS-S30-M/S/B/G/W |
50*10 |
47*7 |
1.5 |
|
LS-S31-M/S/B/G/W |
30*15 |
27*12 |
1.5 |
|
LS-S32-M/S/B/G/W |
40*15 |
38*13 |
1.0 |
|
LS-S33-M/S/B/G/W |
50*25 |
47*22 |
1.5 |
|
LS-S34-M/S/B/G/W |
75.5*45 |
74*43.5 |
1.0 |
|
LS-S35-M/S/B/G/W |
100*44 |
96*40 |
2.0 |
Square Handrail Tube Specifications
|
Product Name |
Slot Pipes |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Installing a Stainless Steel Handrail Square Tube involves securing the tube to handrail brackets or supports along the designated path. The square profile of the handrail tube is typically attached at a comfortable height and angle to ensure optimal usability and safety for users.
Stainless Steel Handrail Square Tubes are relatively low-maintenance. Periodic inspections for any signs of wear, damage, or loose connections are recommended to maintain the safety and integrity of the handrail system.
