Handrail Connector Description

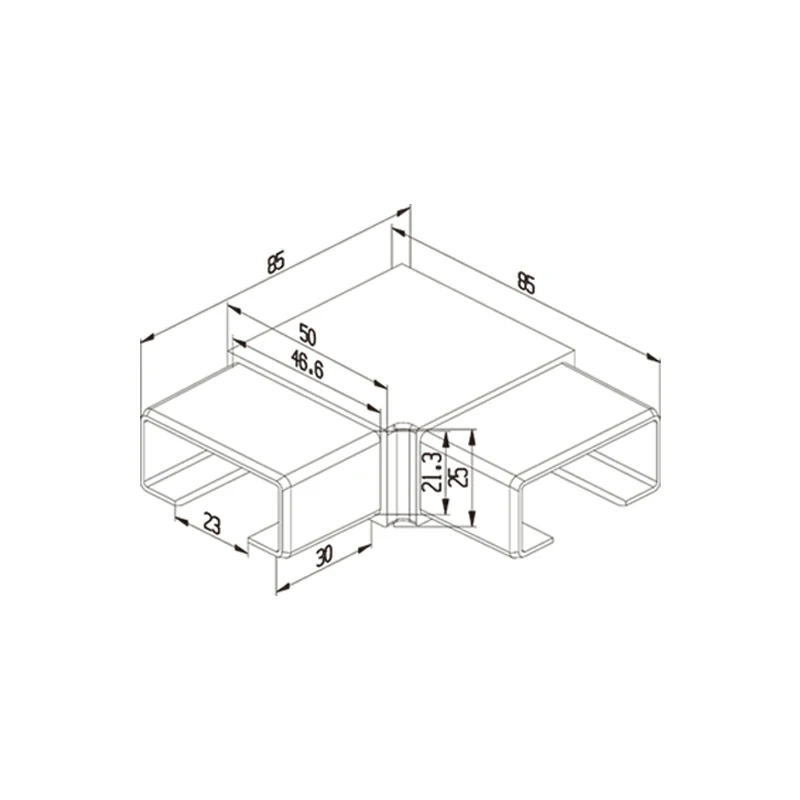

The Right Angle Handrail Tube Corner Connector is designed specifically to join two handrail tubes at a 90-degree angle, allowing for the creation of corners in handrail systems. This connector ensures a secure and stable connection at the corner joint. The design of these right-angle handrail fittings are tailored to fit the shape of handrail tubes and facilitate a strong connection at a right angle. It is engineered to provide structural support and stability at the corner joint of the handrail system.
Handrail Connector Specifications
|
Product Name |
Handrail Tee Connector |
|
Coupling |
50mm*25mm |
|
Weight |
0.31Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Stainless Steel Right Angle Handrail Tube Corner Connectors are commonly used in architectural projects where right-angle corners are integral to the handrail design, such as in staircases, balconies, decks, and other areas where handrails are installed.
The connector is installed by attaching it to the ends of the handrail tubes at the corner joint and securing them in place using screws or other fastening methods. Proper installation is essential to ensure the stability and safety of the handrail system.
