Shower Hinge Description
The glass door hinge is designed for glass-to-glass installation. It offers a 180 degree range of motion, allowing the door to swing open and close fully. This eliminates the need for a door frame, creating a clean and modern aesthetic for your doorway. These shower door hinges are available in various designs, and sizes, and they contribute to the overall functionality and aesthetic appeal of frameless glass shower enclosures.
The 180-degree glass door hinge is made of stainless steel, which provides durability, strength, and resistance to corrosion and rust. Use mild cleaning solutions and avoid harsh abrasives when cleaning the hinges and glass panels. This will help preserve the longevity of the hardware and prevent scratches or damage to the glass.
Shower Hinge Specifications
|
Product Name |
Shower Hinges |
|

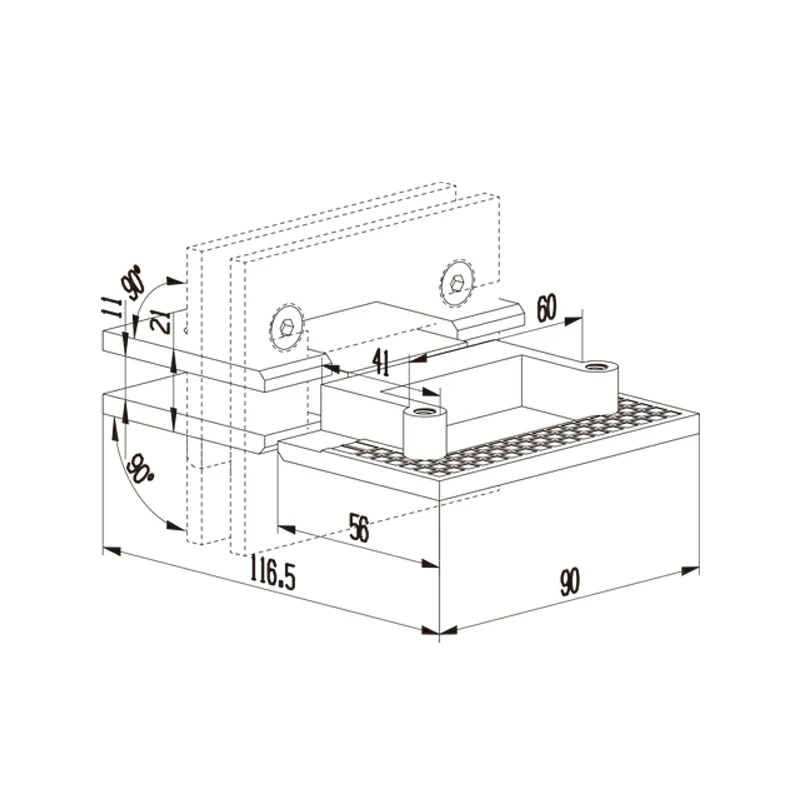

Outline Dimension |
90mm*21mm*116.5mm |
|
Glass Thickness |
8-10mm |
|
Weight |
1.16Kg |
|
Finish |
Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary) Anti-conductive Black/White Transparent Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Stair railing, Balcony, Handrail, Balustrade |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Ensure the 180-degree glass door hinge is compatible with the thickness and type of glass used in your door. Ensure that the hinges are installed correctly and securely to support the weight of the glass panel. Improper installation could lead to the glass panel becoming loose or falling, posing a safety hazard.
Regularly inspect the hinges for signs of wear or damage. If any issues are detected, replace the hinges promptly to maintain the integrity of the shower enclosure.
