Shower Door Hinge Description
Stainless Steel Glass Shower Door Hinge Wall Mount is a type of hinge used to attach a glass shower door to a wall. It is specifically designed for mounting the hinge on the wall surface rather than on the glass itself. Wall mount hinges are available in various sizes, and finishes to match your existing bathroom hardware.
The glass shower door hinge consists of two main components: the wall-mounted bracket and the hinge plate. The wall-mounted bracket is securely attached to the wall surface using screws or other mounting hardware. The hinge plate is then attached to the glass door, allowing it to pivot smoothly.
Shower Door Hinge Specifications
|
Product Name |
Shower Hinges |
|

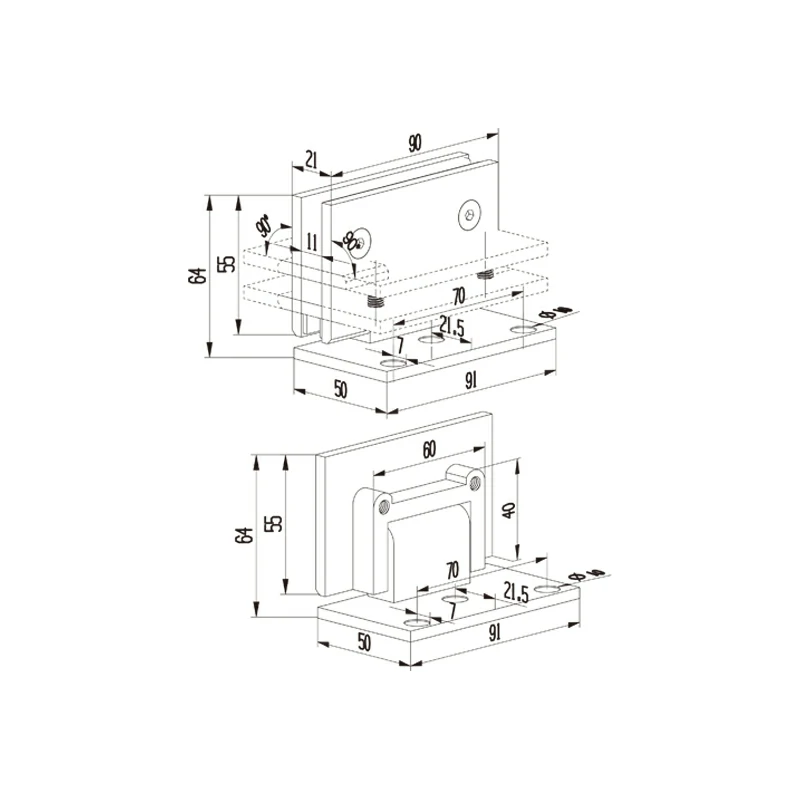

Outline Dimension |
90mm*50mm*65mm |
|
Glass Thickness |
8-10mm |
|
Weight |
0.72Kg |
|
Finish |
Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary) Anti-conductive Black/White Transparent Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Stair railing, Balcony, Handrail, Balustrade |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The shower hinge is suitable for 8-10mm glass, and stainless steel construction ensures durability and resistance to corrosion, making it suitable for use in wet environments like shower enclosures.
The wall-mounted hinge provides stability and support to the glass door while allowing it to open and close securely. It is important to choose a hinge that is compatible with the weight and thickness of the glass door, as well as the dimensions and design of the shower enclosure.
