Home Glass Railing Spring Hinges Spring Hinge Glass to Wall

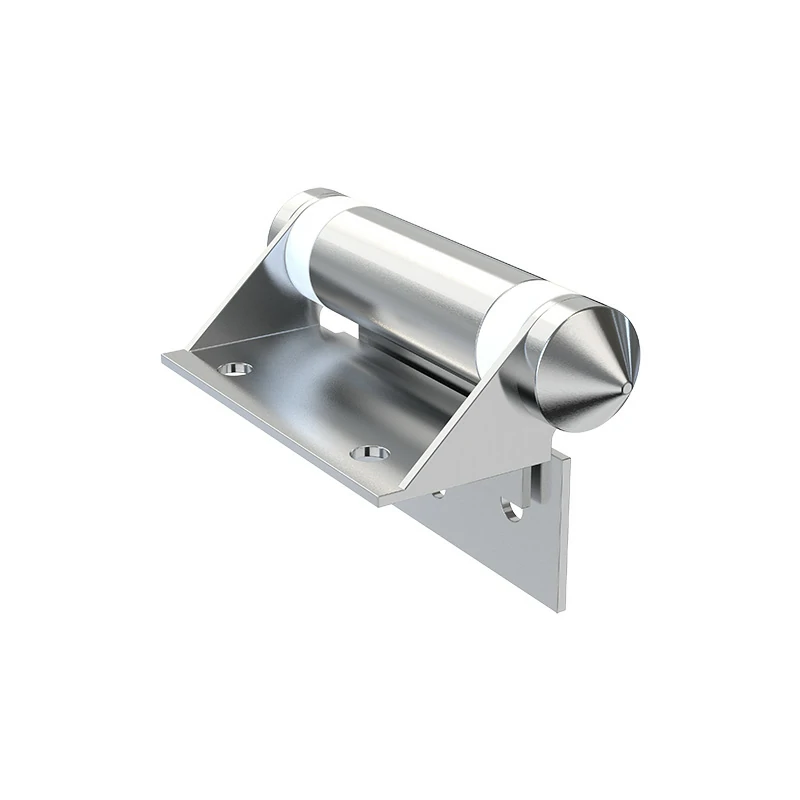

Stainless Steel Glass Pool Fence Hinge

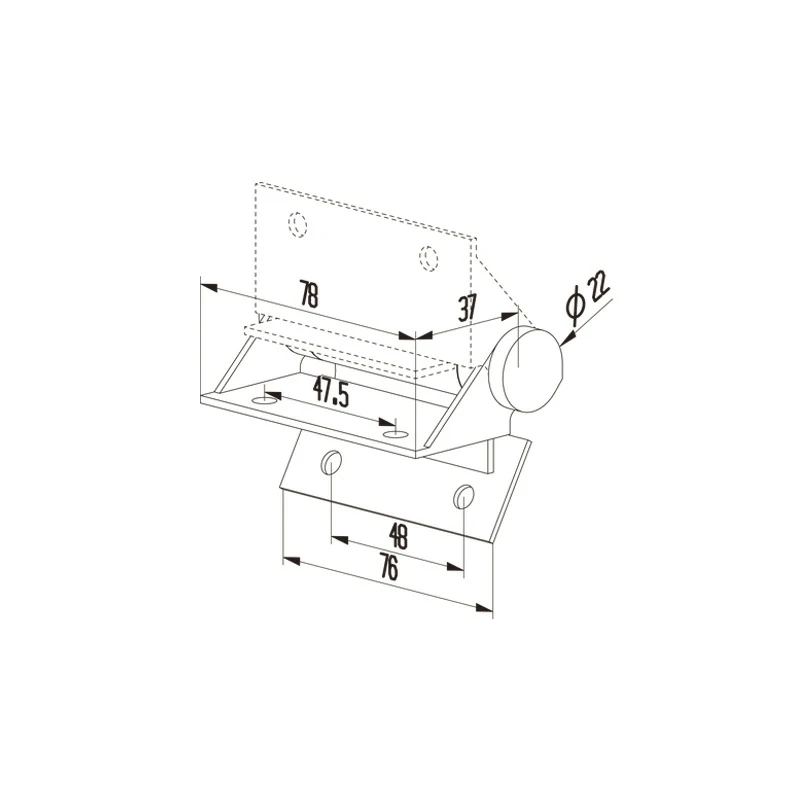

Glass Pool Fence Hinge Structure
Stainless Steel Glass Pool Fence Hinge Glass Pool Fence Hinge Structure

Spring Hinge Glass to Wall

Part No. LS-GH-43

Glass Thickness 8-12mm
Weight 0.25Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

The Glass Pool Fence Hinge is designed to connect a glass panel to a wall, creating a frameless and modern look. Self-closing mechanisms help prevent accidental entry into the pool area. The Glass Pool Fence Hinge is engineered to work with glass panels, typically ranging from 8-12mm in thickness.

These spring hinges are made from high-quality stainless steel, which is highly resistant to corrosion from pool chemicals, weather, and other environmental factors. This ensures long-lasting performance.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

0.25Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure compatibility with the thickness of your glass panel, and it matches the construction of the door frame and door glass. Correct installation position will help ensure that the spring hinges work optimally. Check the hinges and glass panels regularly for wear, rust, or damage.

Stainless Steel Glass Pool Fence Hinge Glass to Wall Application
